Vigor 2962 系列 2.5G (不支援USB 3 / 4G 上網)

產地 : 台灣



  • Vigor 2962

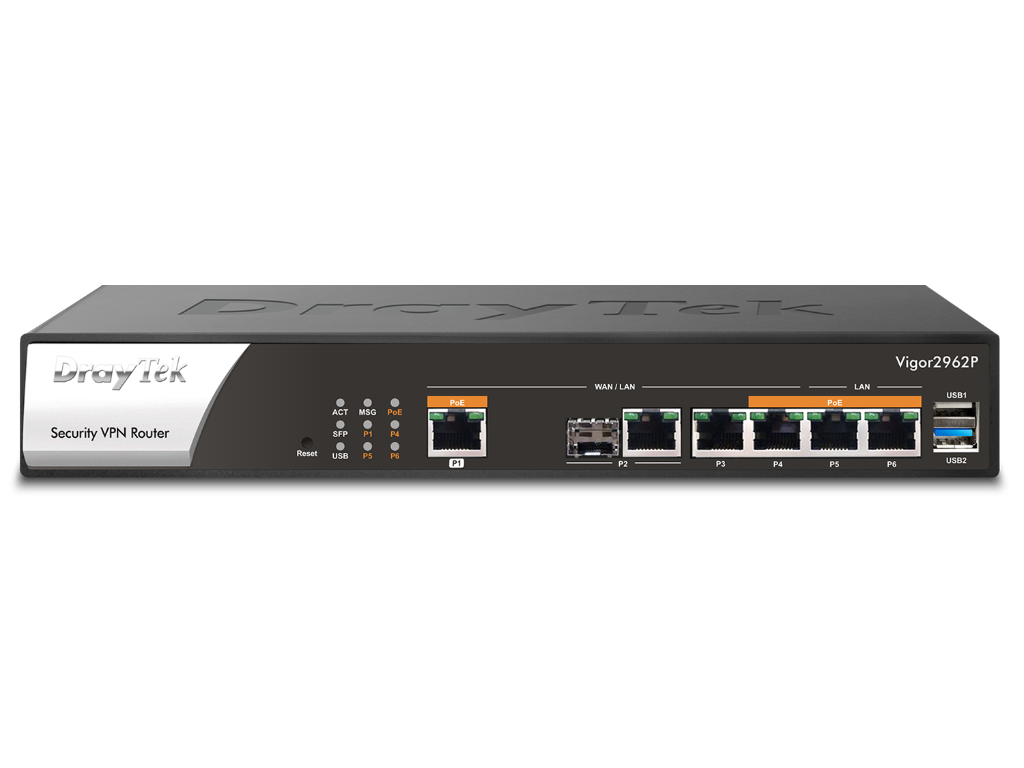

  • Vigor 2962p (含 PoE 100W)


WAN/LAN可切換埠 1x 2.5G Ethernet, RJ-45 (可供電埠/P機種)
1x GbE/SFP Combo
2x GbE, RJ-45 (P4為可供電埠/P機種)

*最多同時啟用 2 WANs

LAN埠 2x GbE, RJ-45 (可供電埠/P機種)
USB孔 1x USB 2.0 + 1x USB 3.0 可當USB磁碟 (從v3.9.6開始支援) 或USB溫度計 (從v4.3.1開始支援)
NAT最快速度(啟用硬體加速) 2.2 Gbps
同時最多NAT連線數 300,000(從v3.9.6開始支援, v3.9.3.1或之前版本支援150,000條)
同時最多VPN連線數 200
同時最多OpenVPN + SSL VPN連線數 50
PoE (P 機種)
PoE可供電埠s 4 (P1/P4/P5/P6)
PoE標準 PoE/PoE+ (802.3af/802.3at)
PoE總供電量 65 watts
PD Device Check
Internet Connection
IPv4 PPPoE, DHCP, Static IP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Load Balancing IP-based, Session-based
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Ping, Strict ARP
WAN Data Budget  (since f/w v3.9.6)
Dynamic DNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 20
Number of LAN Subnet 20
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, OSPF, BGP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
Local RADIUS server
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN), Wireguard
User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256, MD5
Encryption MPPE, DES, 3DES, AES
VPN Trunk (Redundancy) Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Service Type
VoIP Prioritization
Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Managed by VigorACS
Central AP Management 50 VigorAP
Central Switch Management 30 VigorSwitch
可安裝於19吋機架  內附機架組
電源 AC 100-240V @ 0.7-2A
最大電耗 15 watts
100 watts (P機種)
尺寸 273 mm x 171 mm x 45 mm
重量 1.53 kg (P機種)
操作溫度範圍 0 至 45°C
儲存溫度範圍 -25 至 70°C
操作濕度範圍(non-condensing) 10 至 90%
