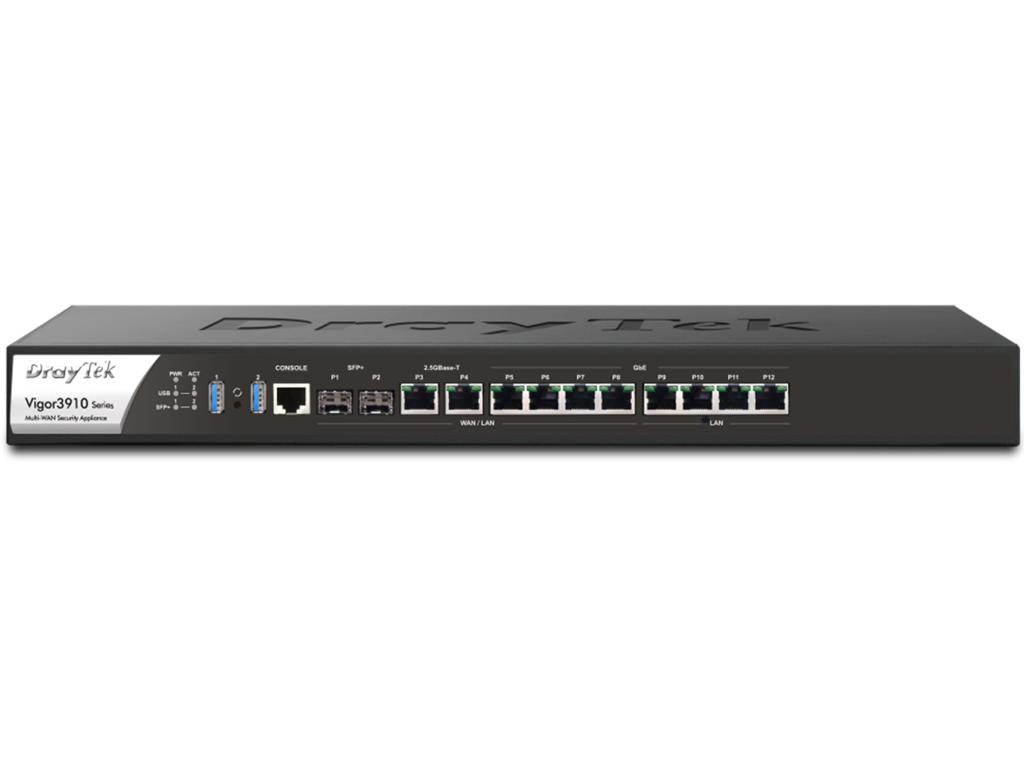

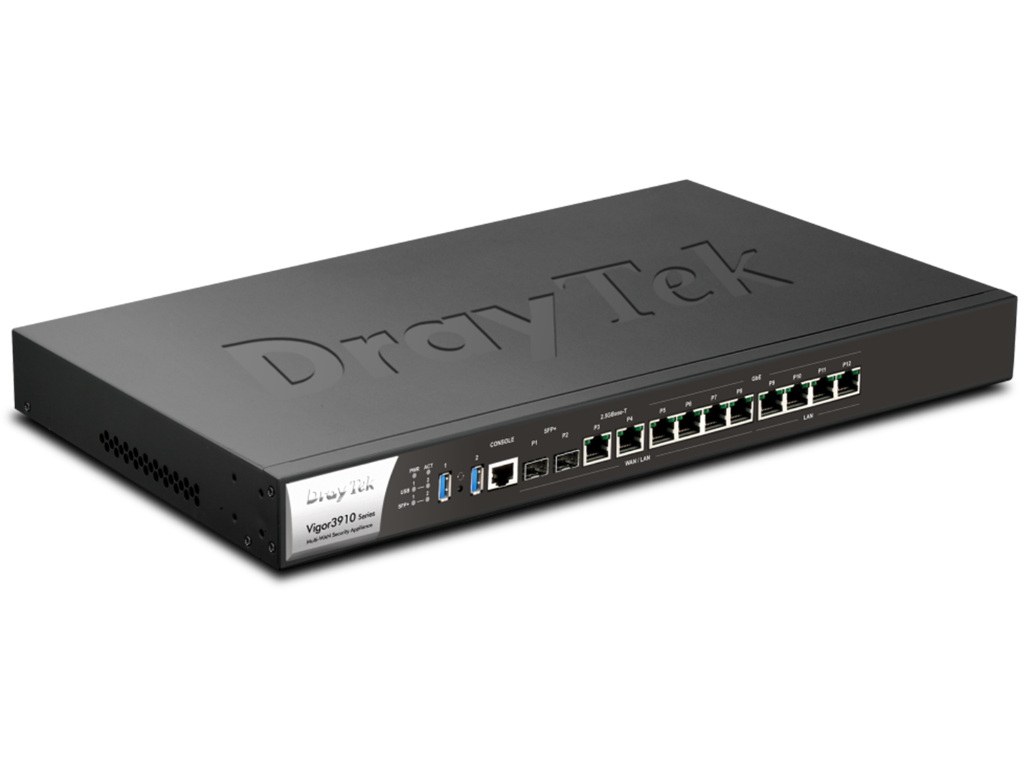

Vigor 3910 SFP+ 10G 高效能路由器防火牆 (不支援USB 3 / 4G 上網)

產地 : 台灣

機型

  • Vigor 3910

規格

介面
WAN/LAN可切換埠 2x 10G/2.5G/1G SFP+ 光纖接口
2x 2.5G/1G/100M/10M Ethernet, RJ-45
4x 1G/100M/10M Ethernet, RJ-45
LAN埠 4x 1G/100M/10M Ethernet, RJ-45
USB孔 2x USB 3.0可當USB磁碟* (從v3.9.6開始支援) 或接USB溫度計* (從v4.3.1開始支援)
Console埠 1x RJ-45
按鈕 1x 重置鍵
效能
NAT最快速度 9 Gbps
IPsec VPN最快速度 3 Gbps
SSL VPN最快速度 1.3 Gbps
NAT連線數 1,000,000
同時最多VPN連線數 500
同時最多OpenVPN + SSL VPN連線數 200
Internet Connection
IPv4 PPPoE, DHCP, Static IP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Load Balancing IP-based, Session-based
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Ping, Strict ARP
WAN Data Budget  (since f/w v3.9.6)
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 100
Number of LAN Subnet 100
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
IP Pool Count Up to 4K per LAN Subnet
PPPoE Server
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, OSPFv2, BGP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
High Availability Active-Standby, Hot-Standby
DNS Security (DNSSEC)
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave(since f/w v3.9.6)
Local RADIUS server
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN(Host to LAN), Wireguard
User Authentication Local, RADIUS, LDAP, TACACS+, mOTP, TOTP
IKE Authentication Pre-Shared Key, X.509, XAuth, EAP
IPsec Authentication SHA-1, SHA-256, MD5
Encryption MPPE, DES, 3DES, AES
VPN Trunk (Redundancy) Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Service Type
VoIP Prioritization
Management
Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Syslog
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Managed by VigorACS
Central AP Management 50 VigorAPs
Central Switch Management 30 VigorSwitches
物理特性
可安裝於19吋機架  內附機架組
尺寸 443 mm x 285 mm x 45 mm
重量 3.23 kg
電源 AC 110~220V @ 1A
最大電耗 35 瓦
操作溫度範圍 0 至 45°C
儲存溫度範圍 -10 至 55°C
操作濕度範圍 10 至 90% (non-condensing)
安規認證 CE FCC BSMI

非陸製
