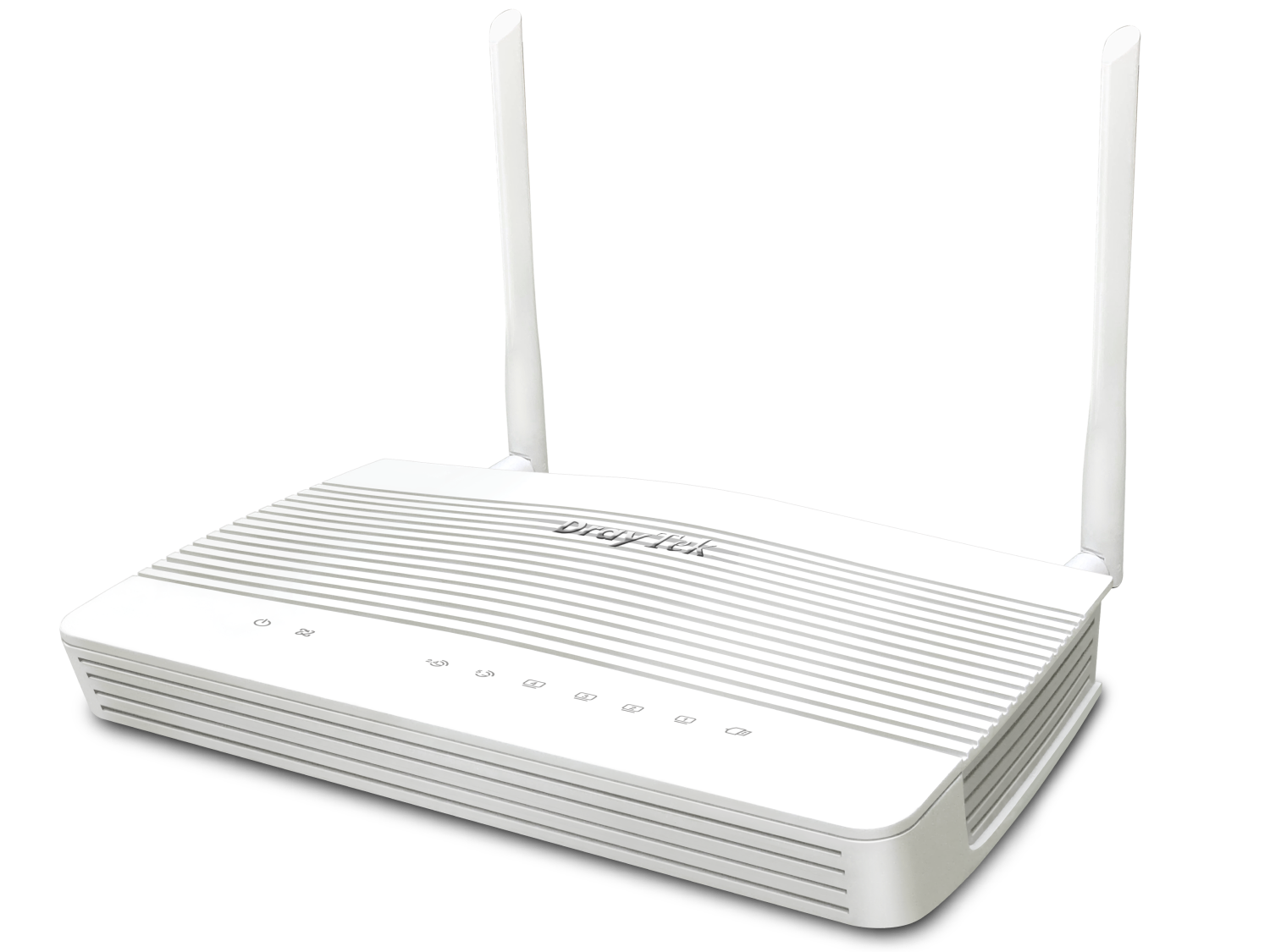

Vigor 2136 系列 效能2300Mbps，產地:大陸 CN
非大陸品牌
製造地:CN
效能2300Mbps
1WAN 2.5G
4LAN (1個2.5G，3個Giga)
802.11ax wifi
VPN 沒有 PPTP L2TP
16 VPN Tunnel ( FW v5.3.2 16 VPN Tunnel )
Model |
Vigor2136 |
Vigor2136ax |
Performance |
||
| NAT Session | 50K | |
| Max. NAT with Hardware Acceleration (Mbps) | 2300 | |
WAN |
||
| Ethernet (2.5 GbE) | 1 | |
| Switchable WAN/LAN (GbE) | 1 | |
| Cellular (via USB) | 2 | |
| Wireless WAN (2.4GHz + 5GHz) | 無 | 有 |
Internet Connection |
||
| IPv4 |
PPPoE
DHCP
Static IP
|
|
| IPv6 |
PPP
DHCPv6
Static IPv6
TSPC
6rd
6in4 Static Tunnel
|
|
| 802.1p/q Multi-VLAN Tagging | 有 | |
| Multi-VLAN/PVC | 有 | |
| Failover | 有 | |
| Connection Detection | ARP, Ping | |
| WAN Data Budget | 有 | |
| Dynamic DNS | 有 | |
| DrayDDNS | 有 | |
LAN |
||
| Fixed LAN (RJ-45, GbE) | 3 | |
| LAN Subnet | 4 | |
| VLAN |
802.1q Tag-based VLAN
Port-based VLAN
|
|
| Max. Number of VLAN | 8 | |
| DHCP Server |
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
|
|
| Wired 802.1x Authentication | 有 | |
| Port Mirroring | * | |
| Local DNS Server | 有 | |
| Conditional DNS Forwarding | 有 | |
| Hotspot Web Portal (Profile No.) | 2 | |
| Hotspot Authentication |
Click-Through
External Portal Server
|
|
WLAN |
||
| 2.4GHz WLAN | 無 | 802.11ax 2x2 MIMO |
| 5GHz WLAN | 無 | 802.11ax 3x3 MU-MIMO |
| Antennas | 無 | 3 |
| Antenna Spec | 無 | 2 x External Detachable + 1 x 5GHz Internal PIFA |
| 2.4GHz Antenna Gain (dBi) | 無 | 2.6 |
| 5GHz Antenna Gain (dBi) | 無 | 2.7 |
| 2.4GHz Max. Link Rate (Mbps) | 無 | 574 |
| 5GHz Max. Link Rate (Mbps) | 無 | 2402 |
| Max. Number of SSIDs per band | 無 | 8 |
| Security Mode | 無 |
OWE
WEP
WPA
WPA2
WPA2/WPA
WPA3
WPA3/WPA2
|
| Authentication | 無 | Pre-Shared Key, 802.1X |
| WiFi 6 | 無 | 有 |
| OFDMA | 無 | 有 |
| Roaming |
Assisted Roaming
|
|
| WPS | 無 | PIN, PBC |
| WDS | 無 | Repeater |
| Access Control | 無 |
Access List
Client Isolation
Hide SSID
WLAN Scheduling
|
| AirTime Fairness | 無 | 有 |
| Band Steering | 無 | 有 |
| WMM | 無 | 有 |
| Mesh (5GHz Only) | 無 | Root |
Other Ports |
||
| USB | 2 | |
| USB Type | 2.0 | |
| USB Application |
User Management
File Explorer
Device Status
Printer Server
Temperature Sensor
USB WAN
|
|
Networking |
||
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
OSPF(V2/V3)
|
|
| Policy-based Routing |
Protocol
IP Address
Port
|
|
| DNS Security (DNSSEC) | 有 | |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
|
| Local RADIUS server | 有 | |
| SMB File Sharing (Requires external storage) | 有 | |
Bandwidth Management |
||
| Traffic Shaping Policy | 有 | |
| IP-based Bandwidth Limit | 有 | |
| QoS (Quality of Service) |
TOS
DSCP
802.1p
IP Address
Port
Application
|
|
| APP QoS | 有 | |
| Default Policy | 有 | |
| VoIP Prioritization | 有 | |
Management |
||
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069
|
|
| Config Backup/Restore | 有 | |
| Firmware Upgrade | TFTP, HTTP | |
| Role-based Privilege | 有 | |
| Access Control | Access List, Brute Force Protection | |
| Notification Alert | SMS, E-mail | |
| SNMP | v1, v2c, v3 | |
| Syslog | 有 | |
| Virtual AP Controller | 9 | |
| Mesh (Number of manageable APs) | 無 | 7 |
| Virtual Switch Controller | 5 | |
| VigorACS Management (Since f/w) | V5.3.0 | |
Security |
||
| IP Reputation Filter | * | |
| Firewall Filter |
IP
Content
Traffic
|
|
| Defense Setup |
ARP Spoofing
IP Spoofing
|
|
| MAC Filtering Profile | 有 | |
| IPv6 Address Security | 有 | |
IAM |
||
| Users & Groups | 有 | |
| Access Policies | 有 | |
| Group Policies | 有 | |
| Conditional Access Policy | 有 | |
| Resources | 有 | |
| Backup and Restore | 有 | |
VPN |
||
| Site-to-Site VPN | 有 | |
| Teleworker VPN | 有 | |
| Protocols |
IPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
Wireguard
|
|
| Max. VPN Tunnels | 4-16，( FW v5.3.2 16 VPN Tunnel ) | |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 390 | |
| Wireguard VPN Throughput (single-directional) (Mbps) | 90 | |
| User Authentication |
Local
RADIUS
TACACS+
mOTP
TOTP
|
|
| IKE Authentication | Pre-Shared Key, X.509 | |
| IPsec Authentication | SHA-1, SHA-256 | |
| Encryption |
DES
3DES
AES
|
|
| Single-Armed VPN | 有 | |
| NAT-Traversal (NAT-T) | 有 | |
| VPN Connection Status | 有 | |
| Backup & Restore | 有 | |
Monitoring |
||
| Clients List | 有 | |
| Log Center | 有 | |
| Wireless Information | 有 | |
| WAN | 有 | |
| ARP Table | 有 | |
| Route Table | 有 | |
| DHCP Table | 有 | |
| IPv6 TSPC Status | 有 | |
| IPv6 Neighbor Table | 有 | |
| DNS Cache Table | 有 | |
| PPPoE Pass-Through | 有 | |
| Session Table | 有 | |
Physical |
||
| Power Input | DC 12V @ 0.9A | DC 12V @ 1.5A |
| Max. Power Consumption (watts) | 10 | 18 |
| Dimension (mm) | 207 x 131 x 42 | |
| Operating Temperature | 0 to 45°C | |
| Storage Temperature | -25 to 70°C | |
| Operating Humidity (non-condensing) | 10 to 90% | |
