| Specification | |
| Support Media | Single-Mode Fiber |
| Connetor | SFP+ |
| Connector Type | Simplex LC |
| Cable Type | SMF |
| Cable Distance | up to 20km |
| Data Rate | 9.95Gb/s to 11.3Gb/s |
| Wavelength | Type A : TX1270nm / RX1330nm Type B : TX1330nm / RX1270nm |
| Transmitter | DFB |
| DOM | Support |
| Protocols | 10GBASE Ethernet, SFF-8431, SFF-8472 |
| Power Supply | 3.3V |
| Power Consumption | < 1watt |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity (non-condensing) | 0°C to 85°C |
| Certificate |
RoHS
|
單模單芯光纖
單模光纖模組
10G SFP+

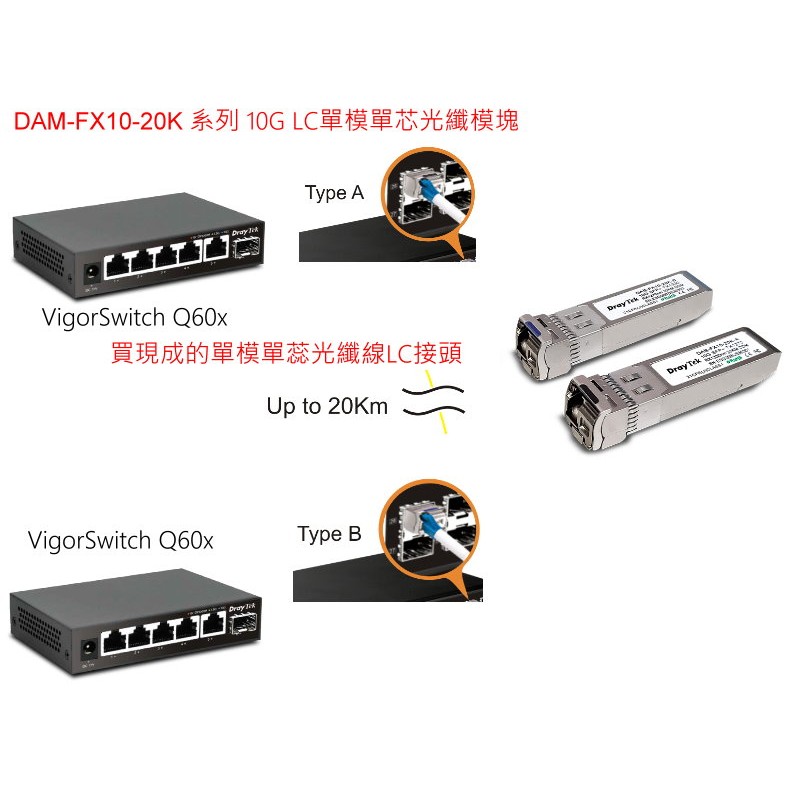

10G Bidirectional Single-Mode Optical Module
10G 雙向單模光模組

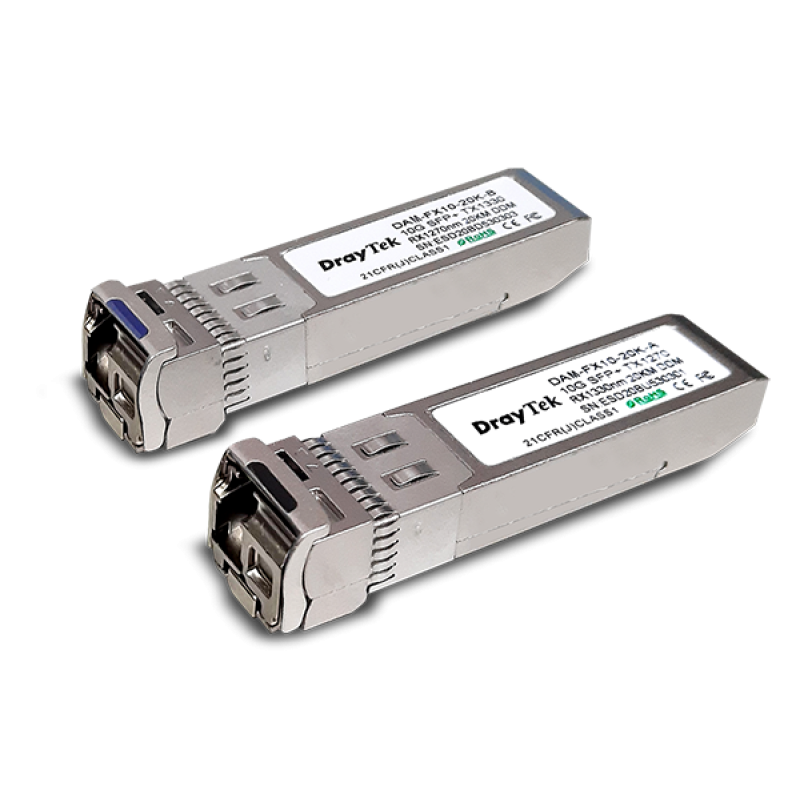

DAM-FX10-20K-A (Type A) and DAM-FX10-20K-B (Type B)，10G LC單模單芯光纖模塊
- 商品型號: DAM-FX10-20K-A (Type A) and DAM-FX10-20K-B (Type B)
- 庫存狀態: 有現貨
-
$3,780
相關商品
-240x240.png "VigorSwitch G2282x 產地:大陸")
-240x240.png "VigorSwitch Q60x 光電轉換器 產地:大陸")
VigorSwitch Q60x 光電轉換器 產地:大陸
非大陸品牌5 port 2.5G 無網管 1 port SFP+ 10G搭配1G Fiber Module: Source SP-GB-TX-CNFM —> SFP port6 test OK搭..
$1,995
-240x240.png "VigorSwitch P2282x 產地:大陸")
VigorSwitch P2542x 產地:大陸
非大陸品牌VigorSwitch P2542x POE 400w 54port L2+ 10G (48/6SFP+) Stacking..
$30,450
標籤: DAM-FX10-20K-A (Type A) and DAM-FX10-20K-B (Type B) 單蕊光纖
