商品描述

Vigor 2915 系列效能530Mbps硬體加速930Mbps

產地 : 台灣

非大陸品牌

效能530Mbps硬體加速930Mbps

無Wifi功能的路由器

路由器不帶無線網路

防火牆不帶無線網路

生產機台使用的防火牆

iot防火牆

CNC防火牆

物聯網防火牆

規格

介面

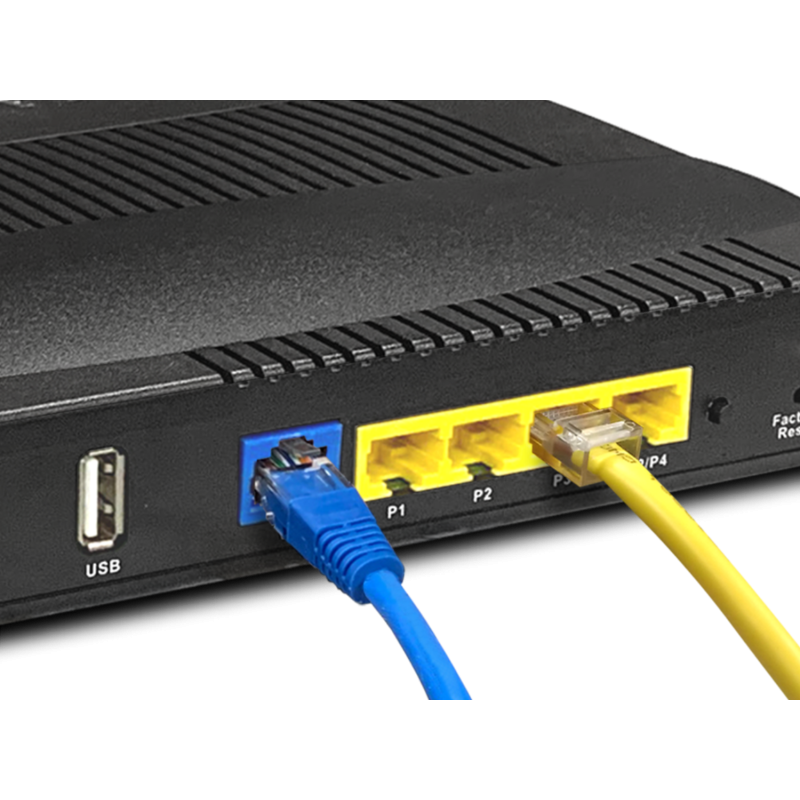

WAN埠	1x 10/100/1000Base-TX, RJ-45
WAN/LAN可切換埠	1x 10/100/1000Base-TX, RJ-45 (WAN 2 or LAN Port 4)
LAN埠	3x 10/100/1000Base-TX, RJ-45
USB孔	1x USB 2.0 (可接3G/4G/LTE USB行動網卡、USB磁碟或印表機)
按鈕	1x 重置鍵 1x WLAN/WPS鍵
2.4G 無線	802.11n 2x2 MIMO 400 Mbps
5G 無線	802.11ac 2x2 MIMO 867 Mbps
效能
NAT最快速度	530 Mbps
啟用硬體加速NAT最快速度	930 Mbps
IPsec VPN最快速度	250 Mbps (AES 256 bits)
SSL VPN最快速度	150 Mbps
同時最多NAT連線數	30,000
同時最多VPN連線數	16
同時最多OpenVPN + SSL VPN連線數	8
Internet Connection
IPv4	PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6	PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging	有
Multi-VLAN for Triple Play	有
Wireless WAN	有
WAN Load Balancing	有
WAN Failover	有
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	ARP, Strict ARP, Ping
WAN Data Budget	有
Dynamic DNS	有
DrayDDNS	有
LAN Management
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	8
Number of LAN Subnet	4
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Port Mirroring	有
Local DNS Server	有
Conditional DNS Forwarding	有
Hotspot Web Portal	有
Hotspot Authentication	Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Networking
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIPv1/v2
Policy-based Routing	Protocol, IP Address, Port, Domain
DNS Security (DNSSEC)	有
IGMP	IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
SMB File Sharing	(Requires external storage)
VPN
LAN-to-LAN	有
Teleworker-to-LAN	有
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
User Authentication	Local, RADIUS, LDAP, mOTP
IKE Authentication	Pre-Shared Key, X.509
IPsec Authentication	SHA-1, SHA-256, MD5
Encryption	MPPE, AES, DES, 3DES
VPN Trunk (Redundancy)	Load Balancing, Failover
Single-Armed VPN	有
NAT-Traversal (NAT-T)	有
DrayTek VPN Matcher	有
Firewall & Content Filtering
NAT	Port Redirection, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy	有
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense	有
Spoofing Defense	有
Bandwidth Management
IP-based Bandwidth Limit	有
IP-based Session Limit	有
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization	有
APP QoS	有
Wireless LAN
Number of SSID	4 per band
Security Mode	WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
Authentication	Pre-Shared Key, 802.1X
WPS	PIN, PBC
WDS	Repeater (5GHz only)
Access Control	Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
AirTime Fairness	有
Band Steering	有
MU-MIMO	(5GHz Only) (dual-band model)
WMM	有
Management
Local Service	HTTP, HTTPS, Telnet, SSH v2, TR-069
Config File Export & Import	有
Config File Compatibility	Vigor2912
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege	有
Access Control	Access List, Brute Force Protection
Notification Alert	SMS, E-mail
SNMP	v2, v2c, v3
Syslog	有
Managed by VigorACS	有
物理特性
電源	DC 12V @ 1A
最大電耗	11.3 watts
尺寸	220mm x 160mm x 36mm
重量	400g
操作溫度範圍	0 至 45°C
儲存溫度範圍	-25 至 70°C
操作濕度範圍(non-condensing)	10 至 90%
安規認證
