Vigor 2915 系列 效能530Mbps硬體加速930Mbps

產地 : 台灣

機型

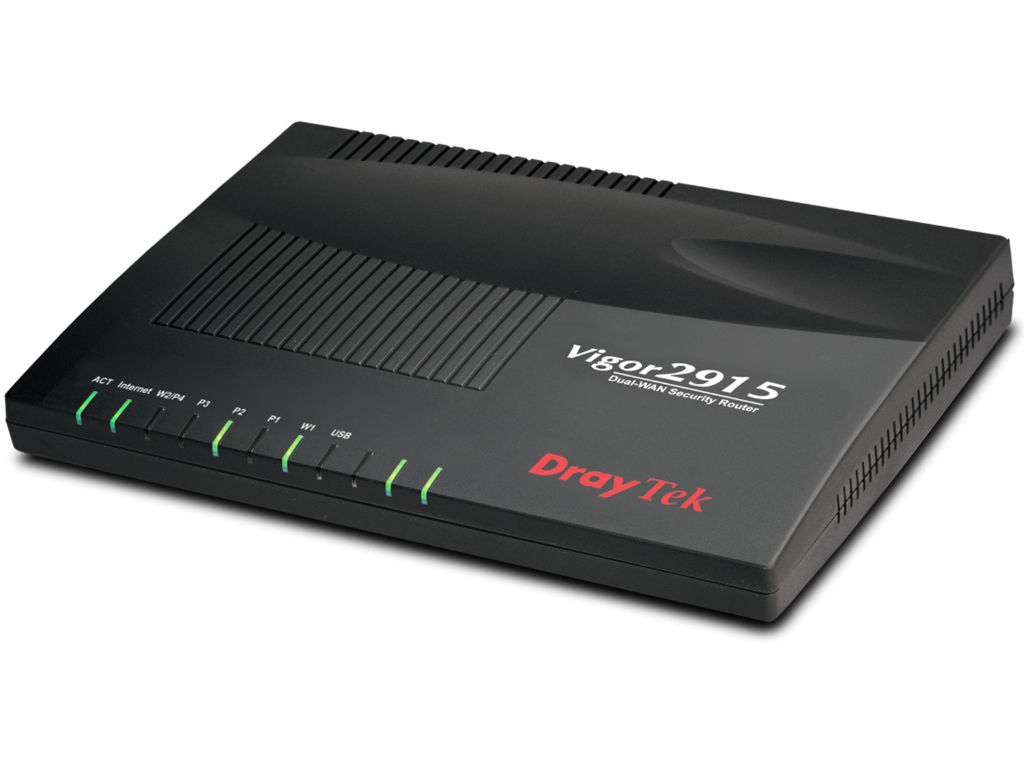

  • Vigor 2915

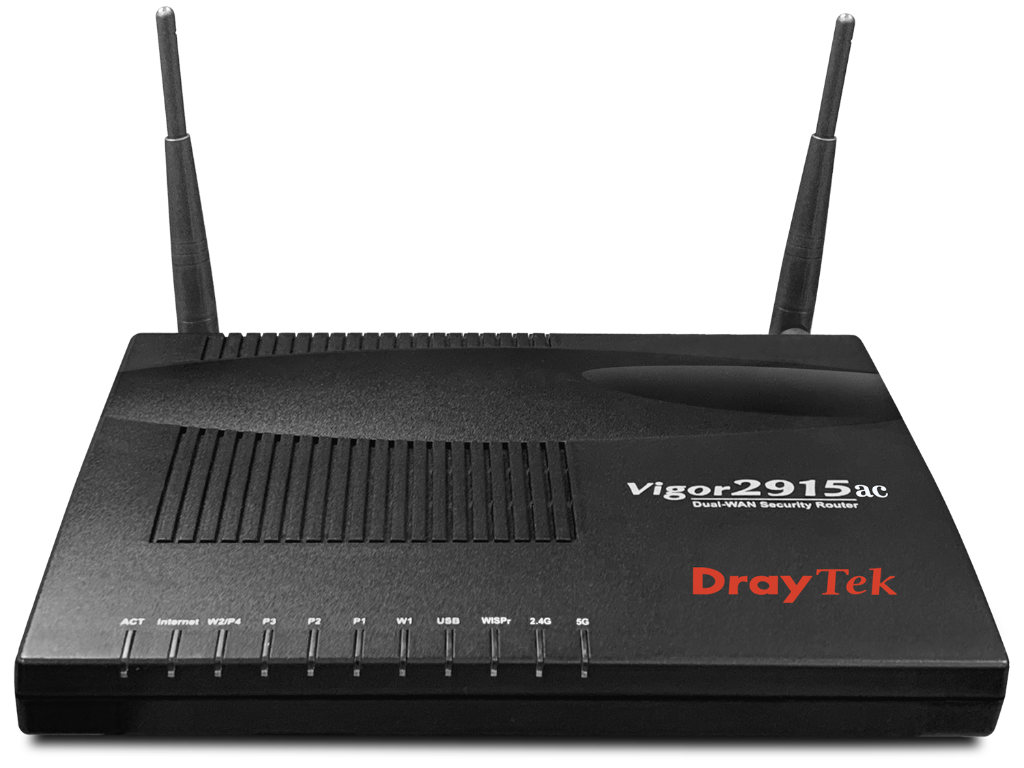

  • Vigor2915ac (含無線網路功能)

規格

介面
WAN埠 1x 10/100/1000Base-TX, RJ-45
WAN/LAN可切換埠 1x 10/100/1000Base-TX, RJ-45 (WAN 2 or LAN Port 4)
LAN埠 3x 10/100/1000Base-TX, RJ-45
USB孔 1x USB 2.0 (可接3G/4G/LTE USB行動網卡、USB磁碟或印表機)
按鈕 1x 重置鍵
1x WLAN/WPS鍵
2.4G 無線 802.11n 2x2 MIMO 400 Mbps
5G 無線 802.11ac 2x2 MIMO 867 Mbps
效能
NAT最快速度 530 Mbps
啟用硬體加速NAT最快速度 930 Mbps
IPsec VPN最快速度 250 Mbps (AES 256 bits)
SSL VPN最快速度 150 Mbps
同時最多NAT連線數 30,000
同時最多VPN連線數 16
同時最多OpenVPN + SSL VPN連線數 8
Internet Connection
IPv4 PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6 PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN for Triple Play
Wireless WAN
WAN Load Balancing
WAN Failover
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Strict ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
Number of LAN Subnet 4
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIPv1/v2
Policy-based Routing Protocol, IP Address, Port, Domain
DNS Security (DNSSEC)
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
SMB File Sharing  (Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
User Authentication Local, RADIUS, LDAP, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256, MD5
Encryption MPPE, AES, DES, 3DES
VPN Trunk (Redundancy) Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
APP QoS
Wireless LAN
Number of SSID 4 per band
Security Mode WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
Authentication Pre-Shared Key, 802.1X
WPS PIN, PBC
WDS Repeater (5GHz only)
Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
AirTime Fairness
Band Steering
MU-MIMO  (5GHz Only) (dual-band model)
WMM
Management
Local Service HTTP, HTTPS, Telnet, SSH v2, TR-069
Config File Export & Import
Config File Compatibility Vigor2912
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v2, v2c, v3
Syslog
Managed by VigorACS
物理特性
電源 DC 12V @ 1A
最大電耗 11.3 watts
尺寸 220mm x 160mm x 36mm
重量 400g
操作溫度範圍 0 至 45°C
儲存溫度範圍 -25 至 70°C
操作濕度範圍(non-condensing) 10 至 90%
安規認證 CE FCC BSMI

非陸製
