Vigor 2927Lac (4G LTE Sim Card直接插機種) 多 WAN 雙卡備援模式

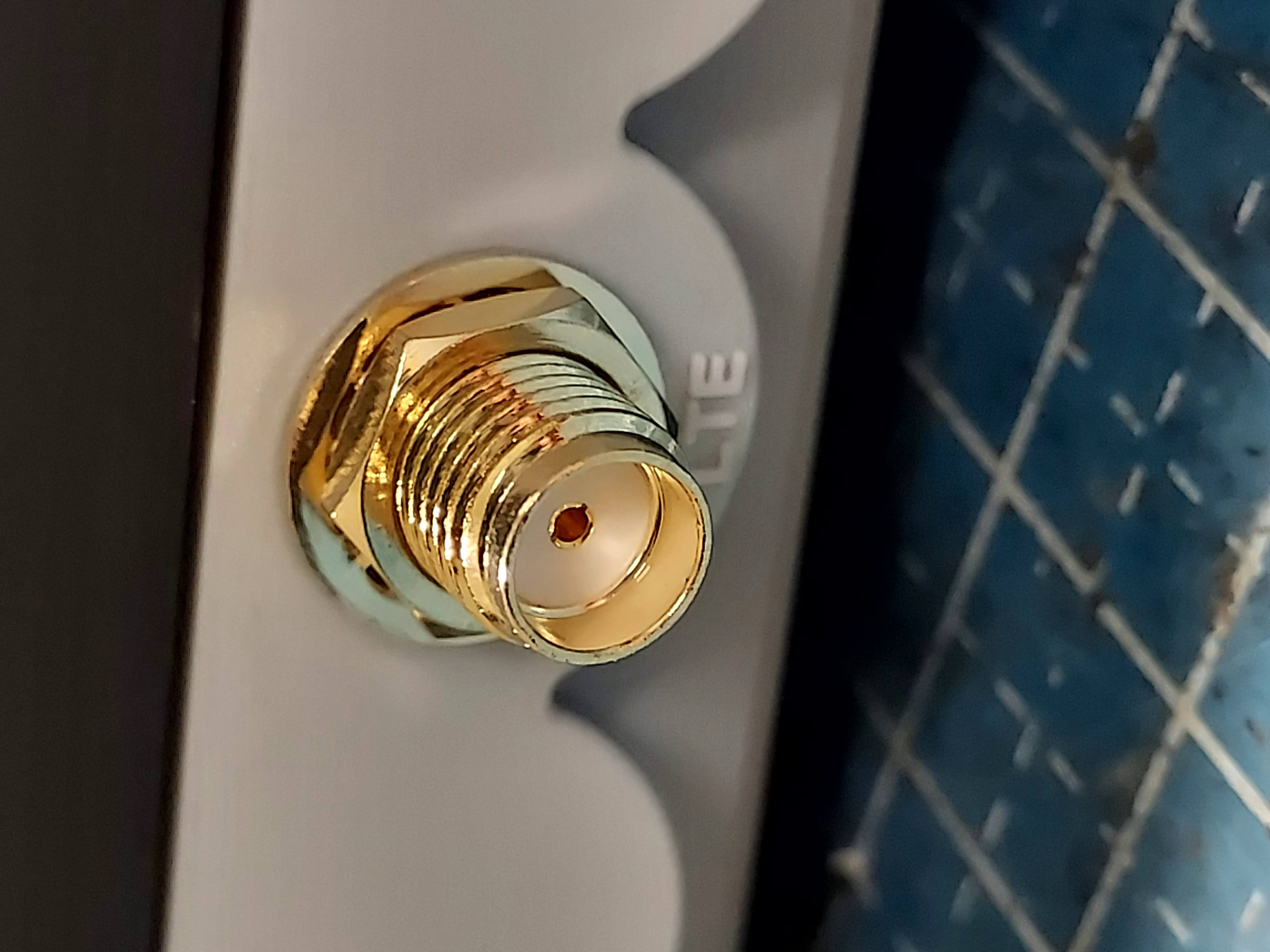

4G LTE  天線接頭,雙母座,母座母針

外接天線的頭是 SMA male SMA內針 公針

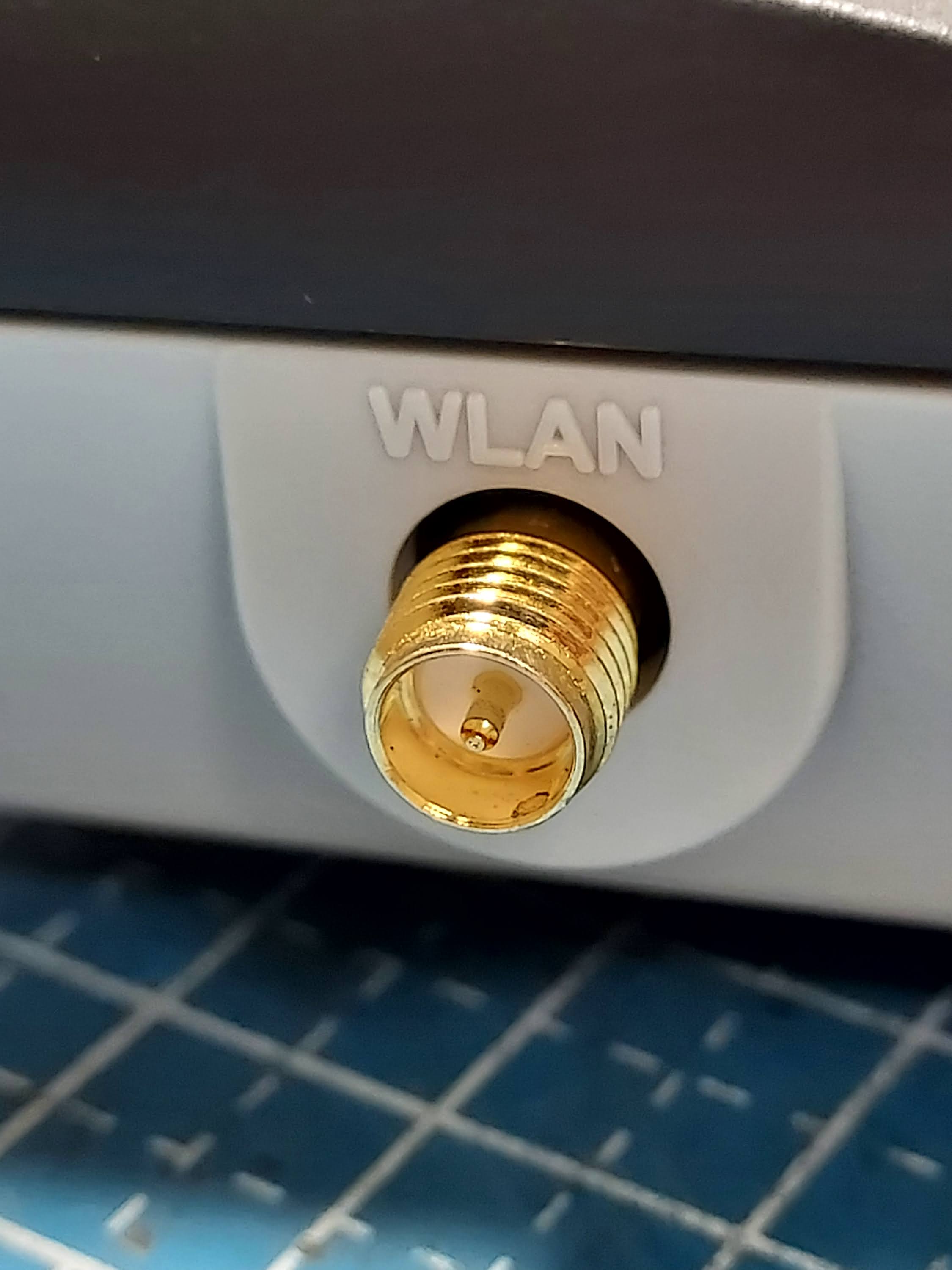

WLAN 天線接頭,母座公針

外接天線是 SMA內孔



產地 : 台灣  非中國製造

規格

介面

WAN埠 1x GbE RJ-45
WAN/LAN可切換埠 1x GbE RJ-45
LAN埠 5x GbE RJ-45
SIM卡插槽 2x 標準尺寸 (一次僅能1張SIM卡連線上網)
USB孔 1x USB 2.0 (可接4G/LTE USB行動網卡、USB磁碟、印表機或USB溫度計)
LTE天線 2x 外接Dipole
增益: 3 dBi
Wi-Fi天線 2x External Dipole
增益: 5GHz頻段3dBi、2.4GHz頻段2.5dBi
2.4G無線 802.11n 2x2 MIMO 400Mbps
5G無線 802.11ac Wave 2 2x2 MU-MIMO 867Mbps
效能
NAT最快速度 800 Mbps
同時最多NAT連線數 60,000
同時最多VPN連線數 50
同時最多OpenVPN + SSL VPN連線數 25
LTE
LTE Category 6
Max. Data Rate 300 Mbps downlink, 50 Mbps uplink
FDD Band 1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 28 (700MHz)
SMS Gateway   Learn More
For other band availability, please contact your local DrayTek distributor or us
Internet Connection
IPv4 PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Wireless WAN
4G/LTE WAN with USB modem
Load Balancing IP-based, Session-based
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 16
Number of LAN Subnet 8
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
Multicast IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Local RADIUS server
SMB File Sharing  (Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN)
User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256
Encryption MPPE, DES, 3DES, AES
VPN Trunk (Redundancy) Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
Wireless LAN
Number of SSID 4 per radio band
Security Mode OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
Authentication Pre-Shared Key, 802.1X
WPS PIN, PBC
WDS Bridge, Repeater
Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
AirTime Fairness
Band Steering
MU-MIMO
WMM
Management
Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Config File Compatibility Vigor2926 LTE
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Syslog
Managed by VigorACS
Central VPN Management 8 VPN
Central AP Management 20 VigorAP
Mesh Network 7 VigorAP
Central Switch Management 10 VigorSwitch
物理特性
電源 DC 12V @ 2.5A
最大電耗 27.6 watts (Lac機種)
尺寸 241mm x 165mm x 44mm
重量 830g (Lac機種)
操作溫度範圍 0 至 45°C
儲存溫度範圍 -25 至 70°C
操作濕度範圍(non-condensing) 10 至 90%
安規認證 CE BSMI
