無線天線(Antenna) ANT-1205
點擊數: 3090
Specification
|
| Operation Band |
2.4GHz and 5GHz |
| Standard |
IEEE 802.11a/b/g/n/ac/ax |
| 2.4GHz Frequency Range |
2400 to 2500 MHz |
| 5GHz Frequency Range |
5150 to 5850 MHz |
| 2.4GHz Gain |
5 dBi |
| 5GHz Gain |
4.5 dBi |
| 2.4GHz Voltage Standing Wave Ratio(VSWR) |
< 2.0 |
| 5GHz Voltage Standing Wave Ratio(VSWR) |
< 2.0 |
| Polarization |
Linear |
| HPBW Horizontal |
360° |
| Power Handling |
1W |
| Impedance |
50 Ω |
| Connector |
RP SMA Plug |
| Environment |
Indoor |
| Package |
2 pcs per box |
| 長度/管徑 |

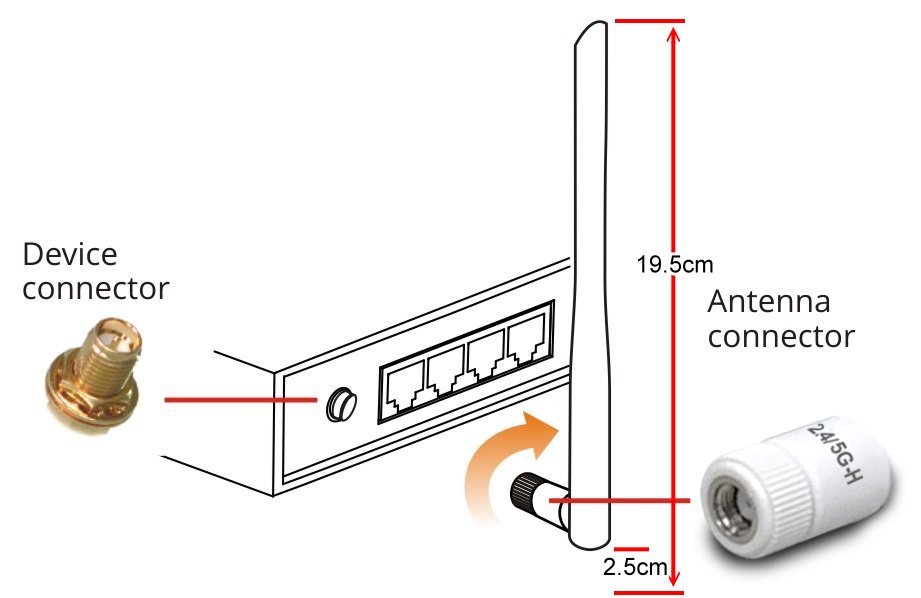

全長 19.5cm，折彎處 2.5cm / 1.3cm |
