Vigor 2135 系列

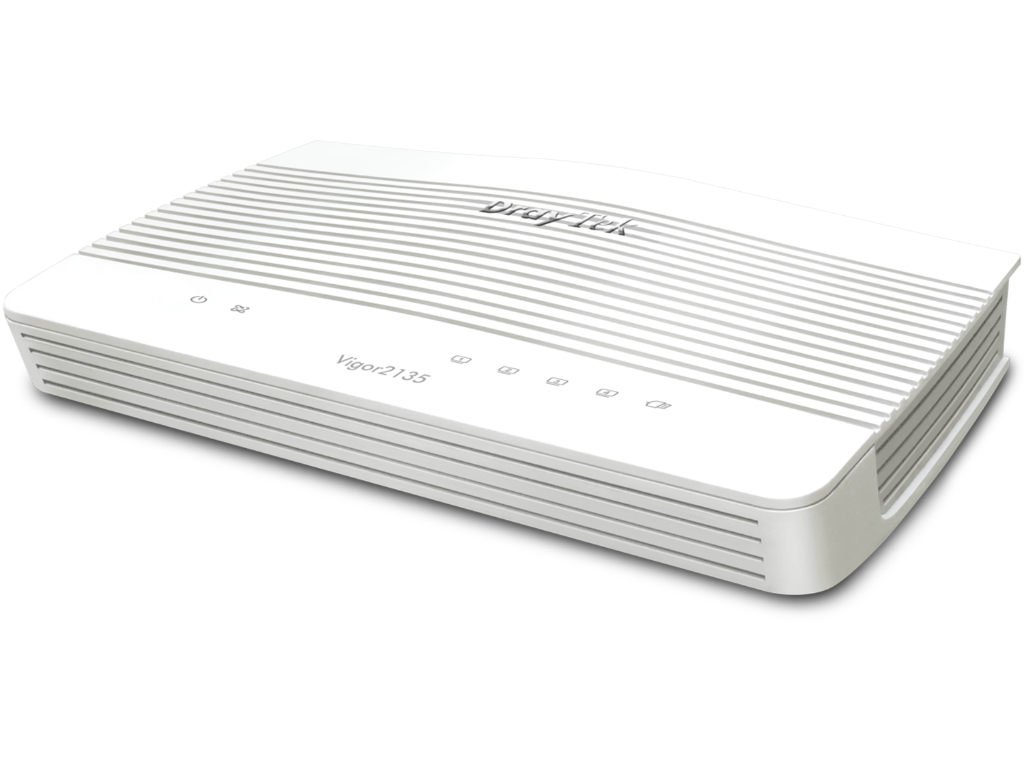

Vigor2135

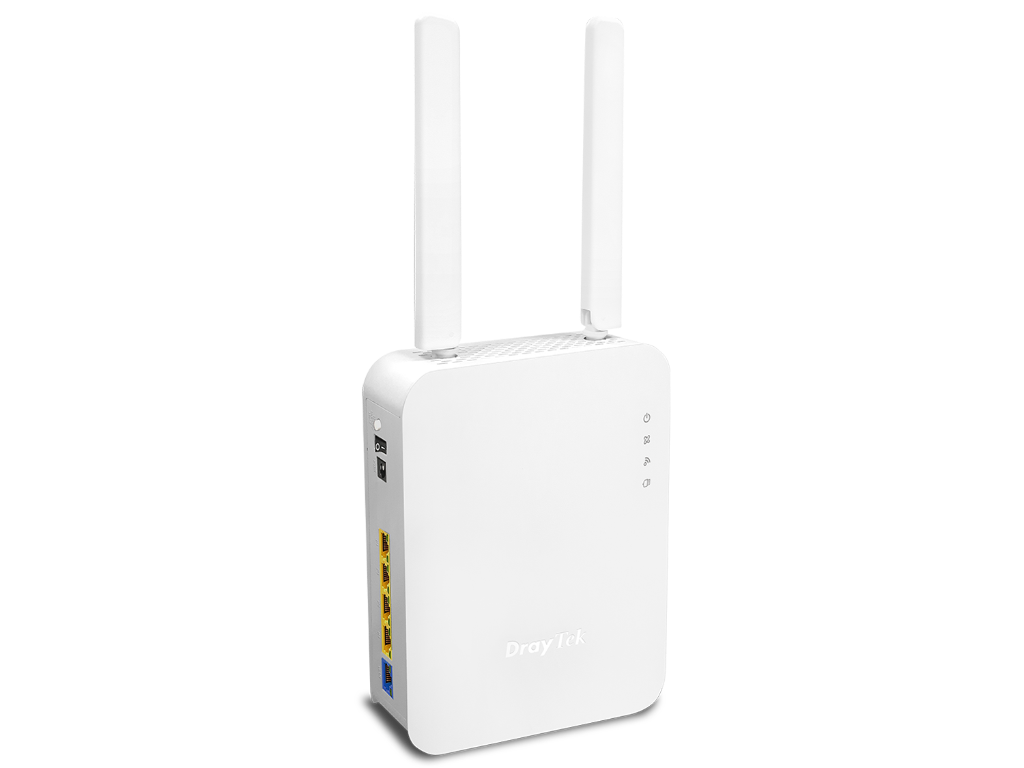

Vigor 2135ax (不支援 wifi mesh,天線不可拆換)

產地 : 台灣

台灣製造

選購機型

  • Vigor2135

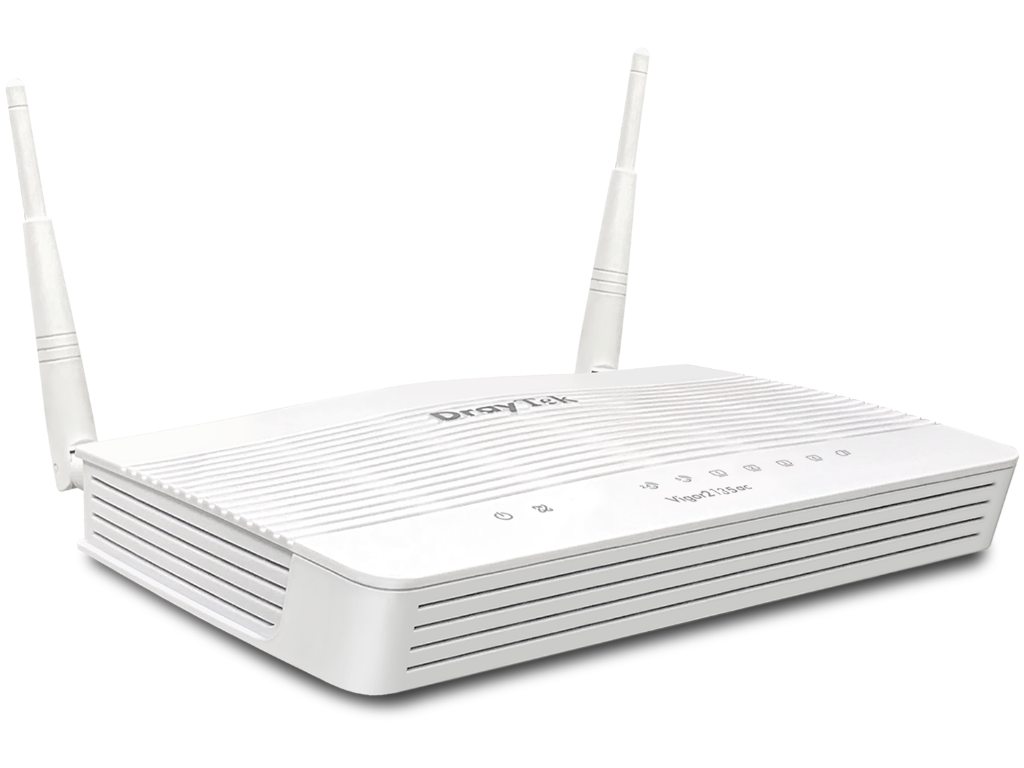

  • Vigor2135ac (含無線網路功能)
  • Vigor2135ax (含無線網路功能 wifi 6,不支援 wifi mesh,天線不可拆換)

規格

介面
WAN埠 1x Gigabit Ethernet
LAN埠 4x Gigabit Ethernet
USB孔 2x USB 2.0 (可接4G/LTE USB行動網卡、USB磁碟、印表機或USB溫度計)
無線天線 2x 可拆式 Dipole, 增益: 5GHz頻段 4dBi、2.4GHz頻段 2dBi (ac 機種)
2x 固定式 Dipole, 增益: 5GHz頻段 2.5dBi、2.4GHz頻段 2.7dBi (ax 機種)
2.4G 無線網路 802.11n 2x2 MIMO (ac 機種)
802.11ax 2x2 MIMO (ax 機種)
5G 無線網路 802.11ac Wave 2 2x2 MU-MIMO (ac 機種)
802.11ax 2x2 MU-MIMO (ax 機種)
效能
同時最多NAT連線數 50,000
同時最多VPN連線數 2
Internet Connection
IPv4 PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6 PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
3G/4G/LTE WAN with USB modem
WAN Failover
Connection Detection ARP, Strict ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
Number of LAN Subnet 4
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, Mail PIN, RADIUS, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
DNS Security (DNSSEC)
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
SMB File Sharing  (Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN
User Authentication Local, RADIUS, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256
Encryption MPPE, DES, 3DES, AES
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
APP QoS
Wireless LAN (ac/ax model)
WiFi 6  (ax model)
Number of SSID 4 per radio band
Security Mode OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
Authentication Pre-Shared Key, 802.1X
OFDMA  (ax model)
WPS PIN, PBC
WDS Repeater (5GHz Only)
Access Control Access List, Client Isolation, Hide SSID, WLAN Scheduling
AirTime Fairness
Band Steering
MU-MIMO  (5GHz Only)
WMM
Management
Local Service HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069
Config File Export & Import
Config File Compatibility Vigor2132 Series, Vigor2133 Series
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
Netflow  (v5, v9, IPFIX)
SNMP v1, v2c, v3
Syslog
Managed by VigorACS
Central AP Management 2 VigorAP
Mesh Network 7 VigorAP
物理特性
電源 DC 12V @ 1-2A
最大電耗 23.6 watts (ax 機種)
尺寸 207mm x 131mm x 42mm
194mm x 155mm x 50mm (ax 機種)
重量 440g (ac機種)
操作溫度範圍 0 至 45°C
儲存溫度範圍 -25 至 70°C
操作濕度範圍(non-condensing) 10 至 90%
安規認證 CE FCC NCC
NCC 證號 CCAQ20LP0040T5
