10G SFP+ / 10G / 2.5G / 1G Rj45
採購型號

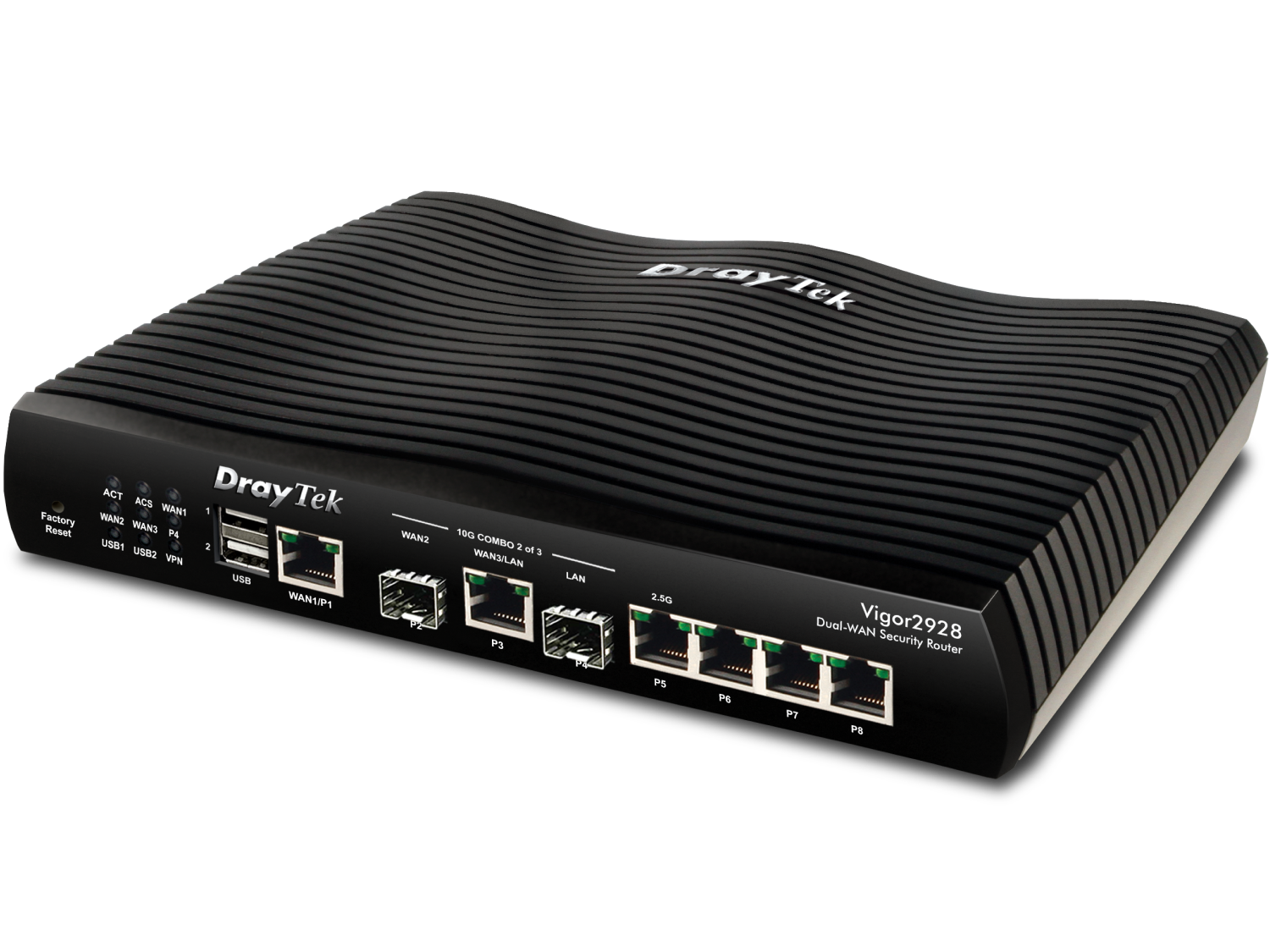

- Vigor2928
- Vigor2928be Wifi 7

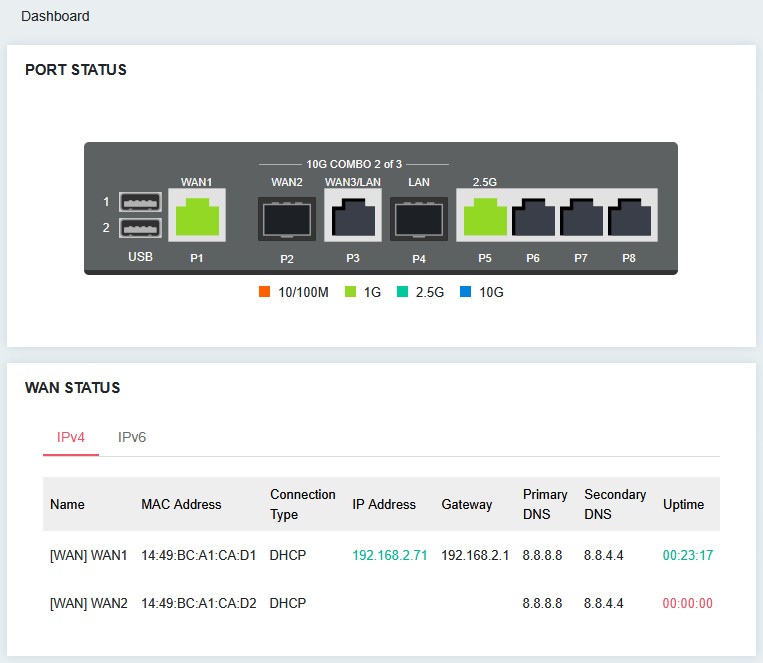

Vigor2928 儀表板
|
Model |
2928 |
2928be |
|
Performance
|
||
| NAT Session | 100K ( v5.4.3含以後的版本 ) | |
| Max. NAT (Mbps) | 9300 | |
|
WAN
|
||
| Ethernet (1 GbE) | 1 | |
| Ethernet (10 GbE) | 1 | |
| SFP (10G) | 1 | |
|
Ethernet - Switchable
|
(WAN/LAN) | |
| Cellular (via USB) | 2 | |
| Wireless WAN (2.4GHz + 5GHz) | 無 | 有 |
|
Internet Connection |
||
| IPv4 |
PPPoE
DHCP
Static IP
|
|
| IPv6 |
PPP
DHCPv6
Static IPv6
TSPC
6rd
6in4 Static Tunnel
|
|
| 802.1p/q Multi-VLAN Tagging | 有 | |
| Failover | 有 | |
| Load Balancing | IP-based, Session-based | |
| Connection Detection | ARP, Ping | |
| WAN Data Budget | 有 | |
| Dynamic DNS | 有 | |
| DrayDDNS | 有 | |
|
LAN |
||
| Fixed LAN (RJ-45, 1GbE) | 3 | |
| Fixed LAN (RJ-45, 2.5GbE) | 1 | |
| Fixed LAN (SFP, 10GbE) | 1 | |
| LAN Subnet | 8 | |
| VLAN |
802.1q Tag-based VLAN
|
|
| Max. Number of VLAN | 8 | |
| DHCP Server |
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
|
|
| Wired 802.1x Authentication | 有 | |
| Port Mirroring | 有 | |
| Local DNS Server | 有 | |
| Conditional DNS Forwarding | 有 | |
| Hotspot Web Portal (Profile No.) | 4 | |
| Hotspot Authentication |
Click-Through
Social Login
SMS PIN
RADIUS
External Portal Server
|
|
|
WLAN |
||
| 2.4GHz WLAN | 802.11be 4x4 MU-MIMO | |
| 5GHz WLAN | 802.11be 4x4 MU-MIMO | |
| WiFi Antenna (External) | 2 | |
| WiFi Antenna (Internal) | 1 | |
| 2.4GHz Max. Link Rate (Mbps) | 1376 | |
| 5GHz Max. Link Rate (Mbps) | 5764 | |
| Max. Number of SSIDs (per band) | 8 (4) | |
| Security Mode |
OWE
WPA
WPA2
WPA2/WPA
WPA3
WPA3/WPA2
|
|
| Authentication | Pre-Shared Key | |
| Wi-Fi 7 | 有 | |
| OFDMA | 有 | |
| Roaming |
Assisted Roaming
Pre-Authentication
802.11r
802.11k
|
|
| WPS | WPS Button, PIN Code | |
| Access Control |
Hide SSID
WLAN Scheduling
|
|
| AirTime Fairness | 有 | |
| Band Steering | 有 | |
| WMM | 有 | |
| Mesh (5GHz Only) | Root | |
|
Other Ports |
||
| USB | 2 | |
| USB Type | 2.0 | |
| USB Application |
User Management
FTP File Sharing
Device Status
Printer Server
Temperature Sensor
USB WAN
|
|
| SMB File Sharing (Requires external storage) | 有 | |
|
Networking |
||
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
OSPF(V2/V3)
BGP
|
|
| Policy-based Routing |
Protocol
IP Address
Port
|
|
| DNS Security (DNSSEC) | 有 | |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
|
| Local RADIUS server | 有 | |
|
Bandwidth Management |
||
| Traffic Shaping Policy | 有 | |
| IP-based Bandwidth Limit | 有 | |
| IP-based Session Limit | 有 | |
| QoS (Quality of Service) |
IP Address
Port
Application
|
|
| APP QoS | 有 | |
| Default Policy | 有 | |
| VoIP Prioritization | 有 | |
|
NAT |
||
| Port Forwarding | 有 | |
| DMZ Host | 有 | |
| Port Trigger | 有 | |
| ALG (Application Layer Gateway) | SIP, RTSP | |
| UPnP | 有 | |
|
Management |
||
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069
|
|
| Config Backup/Restore | 有 | |
| Firmware Upgrade | WUI, TFTP, TR069 | |
| Role-based Privilege | 有 | |
| Access Control | Access List, Brute Force Protection | |
| Notification Alert | SMS, E-mail | |
| SNMP | v1, v2c, v3 | |
| Syslog | 有 | |
| Virtual AP Controller (Device up to) | 20 | |
| Mesh (Number of manageable APs) | 無 | 7 |
| Virtual Switch Controller | 10 | |
| VigorACS Management (Since f/w) | V5.4.0 | |
|
Security |
||
| URL/IP Reputation | 有 | |
| Threat Protection | 有 | |
| Firewall Filter | IP, Content, Traffic | |
| Port Knocking | 有 | |
| Defense Setup | ARP Spoofing, IP Spoofing | |
| MAC Filtering Profile | 有 | |
| IPv6 Address Security | 有 | |
|
IAM |
||
| Users & Groups | 有 | |
| Access Policies | 有 | |
| Group Policies | 有 | |
| Conditional Access Policy | 有 | |
| Resources | 有 | |
| Account Status | 有 | |
| Backup and Restore | 有 | |
|
VPN |
||
| Site-to-Site VPN | 有 | |
| Teleworker VPN | 有 | |
| EasyVPN | 有 | |
| Protocols |
IPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
WireGuard
|
|
| Max. VPN Tunnels | 50 | |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 540 | |
| WireGuard VPN Throughput (single-directional) (Mbps) | 85 | |
| User Authentication |
Local
RADIUS
TACACS+
mOTP
TOTP
|
|
| IKE Authentication | Pre-Shared Key, X.509 | |
| IPsec Authentication | SHA-1, SHA-256 | |
| Encryption | DES, 3DES, AES | |
| Translate Local Network(Site-to-Site VPN) | 有 | |
| Single-Armed VPN | 有 | |
| NAT-Traversal (NAT-T) | 有 | |
| VPN Matcher | 有 | |
| VPN Connection Status | 有 | |
| Backup & Restore | 有 | |
|
Monitoring |
||
| Log Center | 有 | |
| WAN | 有 | |
| ARP Table | 有 | |
| Route Table | 有 | |
| DHCP Table | 有 | |
| IPv6 TSPC Status | 有 | |
| IPv6 Neighbor Table | 有 | |
| LLDP Neighbors | 有 | |
| DNS Cache Table | 有 | |
| Remote DSL Status | 有 | |
| SFP Information | 有 | |
| PPPoE Pass-Through | 有 | |
| Session Table | 有 | |
| Running Table | 有 | |
|
Physical |
||
| Power Input | DC 12V @ 1.5A | DC 12V @ 2.8A |
| Max. Power Consumption (watts) | 18 | 33.6 |
| Dimension (mm) | 241 x 165 x 43 | |
| Weight (g) | 590.6 | |
| Operating Temperature | 0 to 45°C | |
| Storage Temperature | -25 to 70°C | |
| Operating Humidity (non-condensing) | 10 to 90% | |
注意事項

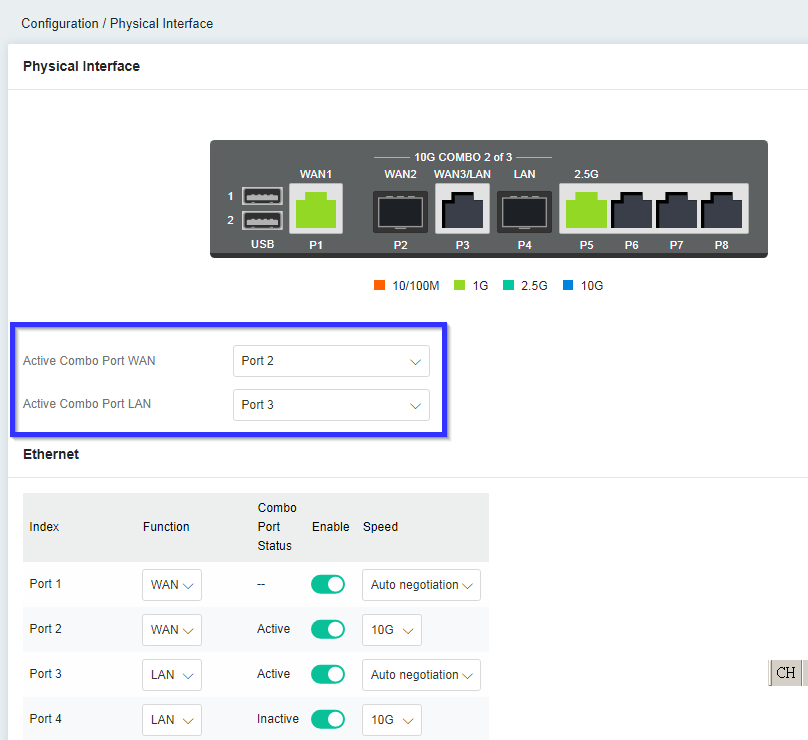

P2~P4是COMBO 2 of 3 三個port只能同時用兩個
