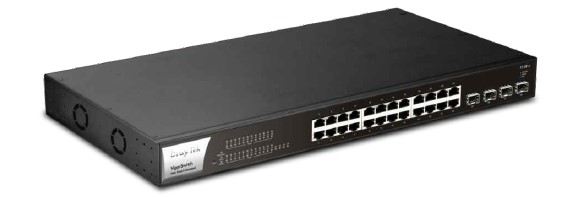

140W PoE Switch
Web Smart Managed Switch
24 port 10/100/1000 PoE+ PSE Giga Ethernet Rj-45
4 port SFP+ 10G
有風扇
網路交換器
乙太網路交換器
光纖交換器
Performance |
|
| Buffer Size (Mbit) | 4.2 |
| Switching Capacity (Gbps) | 56 |
| Forwarding Rate (64 bytes)(Mpps) | 41.7 |
| MAC Address Table | 8K |
| Max. Jumbo Frame (KB) | 9 |
Ports |
|
| 1 GbE | 24 |
| SFP+ (10G) | 4 |
PoE |
|
| PoE+(802.3af/at) Ports | 24 |
| PoE Power Budget (watts) | 140 |
| Scheduled On/Off | 有 |
Standard Compliance |
|
| Ethernet Standards |
802.3af PoE
802.3at PoE+
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.1q Tag-based VLAN
802.3x Flow Control
802.3 Auto-Negotiation
802.1p Class of Service
802.1d STP
802.1w RSTP
802.3ad LACP
802.1AB LLDP
802.3az EEE
|
Spanning Tree |
|
| STP | |
| RSTP | |
Link Aggregation |
|
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | LACP, Static |
| Traffic Load Balancing | 有 |
VLAN |
|
| Max. Number of VLAN | 512 |
| VLAN Type |
802.1q Tag-based VLAN
MAC-based VLAN
Protocol-based VLAN
Management VLAN
Voice VLAN
Surveillance VLAN
|
Multicast |
|
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | 有 |
ONVIF Surveillance |
|
| Discovery | 有 |
| Surveillance Topology | 有 |
| Real-Time Video Streaming | 有 |
| ONVIF Device Maintenance |
Device Info
Network Settings
Time Settings
Reboot
Reset to Factory Default
|
QoS |
|
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) |
CoS
DSCP
CoS-DSCP
IP Precedence
|
| Rate Limiting | 有 |
Security |
|
| IP Source Guard | 有 |
| Traffic Control | DoS Defense, Storm Control |
| IP Conflict Prevention | 有 |
| Loop Protection | 有 |
Management |
|
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
|
| Config Backup/Restore | 有 |
| 2-Level Administration Privilege | 有 |
| Access Control | Access List |
| OpenVPN Client | 有 |
| SNMP | v1, v2c, v3 |
| SNTP (Simple Network Time Protocol) | 有 |
| LLDP | 有 |
| Mail Alert |
Port Status
Port Speed
System Restart
IP Conflict
Hardware Monitor
Device Check
ONVIF IP Cam Snapshot
|
| VigorRouter Management (SWM) | 有 |
| VigorConnect Management (Since f/w) | V2.9.2 |
| VigorACS Management (Since f/w) | V2.9.2 |
Physical |
|
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 2.5A |
| Max. Power Consumption (watts) | 200 |
| Dimension (mm) | 440 x 216 x 44 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
