規格
介面 |
|

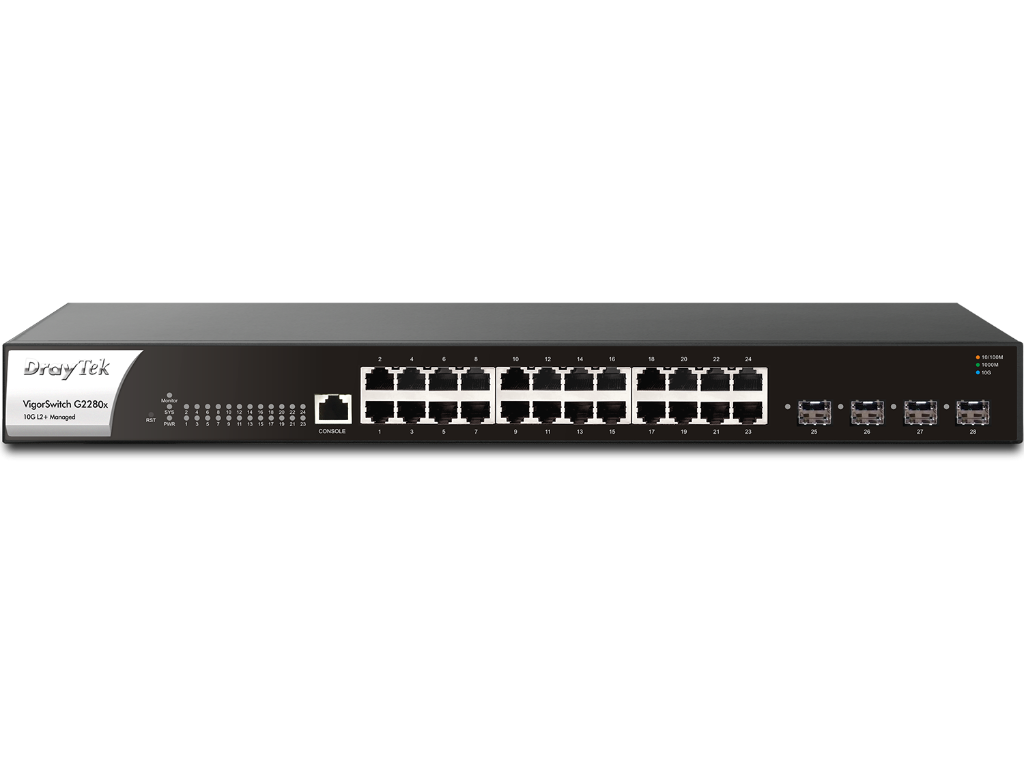

| LAN埠 | 24x 10/100/1000Mbps Ethernet, RJ-45 4x 1000Mbps/10Gbps SFP+ |
| Console孔 | 1x RJ-45 |
| 按鍵 | 1x 重置鍵 |
效能 |
|
| 封包緩衝區 | 12 Mbit |
| 背板頻寬 | 128 Gbps |
| 交換轉送率 | 95.2 Mpps (64 bytes) |
| MAC位址數量 | 16k |
| 巨型封包 | 最多 12 KB |
| L3路由表 | 6k static route + 512 prefix route |
Networking Standards |
|
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T IEEE802.3ae 10GBase-X 802.1q Tag-based VLAN 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
VLAN |
|
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based Protocol-Based Management VLAN Voice VLAN Surveillance VLAN |
| 802.1x Guest VLAN | 有 |
| Port Isolation | 有 |
| GVRP | 有 |
| Q-in-Q | Basic |
ONVIF Surveillance |
|
| Discovery | 有 |
| Surveillance Topology | 有 |
| Real-Time Video Streaming | 有 |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
QoS |
|
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit & Shaping | 有 |
Security |
|
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | 有 |
| 802.1x Port Access Control | 有 |
| IP Source Guard | 有 |
| IP Conflict Detection | 有 |
| IP Conflict Prevention | 有 |
| Loop Protection | 有 |
| Dynamic ARP Inspection | 有 |
| DHCP Snooping with Option 82 | 有 |
Link Aggregation |
|
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC Address, IP/MAC Address |
Multicast |
|
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | 有 |
| MLD Snooping | v1, v2 (Basic) |
| Max. Number of Multicast Group | 256 |
| Group Throttling | 有 |
| Group Filtering | 有 |
| MVR (Multicast VLAN Registration) | 有 |
Layer 3 Features |
|
| Static Route | 有 |
| VLAN Route | 有 |
| DHCP Server | 有 |
AAA |
|
| Authentication Server | RADIUS, TACACS+ |
| Port Authorization | 有 |
| Management Account | 有 |
| RADIUS Attribute Assignment | User Privilege, VLAN |
| Accounting | 有 |
| Multiple Server | 有 |
Management |
|
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH v2 |
| OpenVPN Client | Certificate-based authentication |
| User Authentication | Local Database, RADIUS, TACACS+ |
| sFlow | 有 |
| SNMP | v1, v2c, v3 |
| Private MIB | 有 |
| RMON Group | 1, 2, 3, 9 |
| LLDP | LLDP-MED, Media Endpoint Discovery Extension |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
| Syslog | 有 |
| 2-Level Admin Privilege | 有 |
| Multiple Admin Accounts | 有 |
| Managed by VigorRouter SWM | 有 |
| Managed by VigorConnect | 有 |
| Managed by VigorACS 3 | 有 |
| Config File Export/Import | 有 |
| Dual Image | 有 |
| SNTP (Simple Network Time Protocol) | 有 |
物理特性 |
|
| 可安裝於19吋機架 | 內附安裝套件 |
| 電源 | AC 100-240V @ 1A |
| 最大功耗 | 25 watts |
| 尺寸 (mm) | 441(W) x 197(D) x 45(H) |
| 重量 | 2.44 kg (5.0 lb) |
| 操作溫度範圍 | 0 to 45°C |
| 儲存溫度範圍 | -40 to 70°C |
| 操作濕度範圍 | 10 to 90% non-condensing |
| 儲存濕度範圍 | 5 to 90% non-condensing |
| 安規認證 |   |
