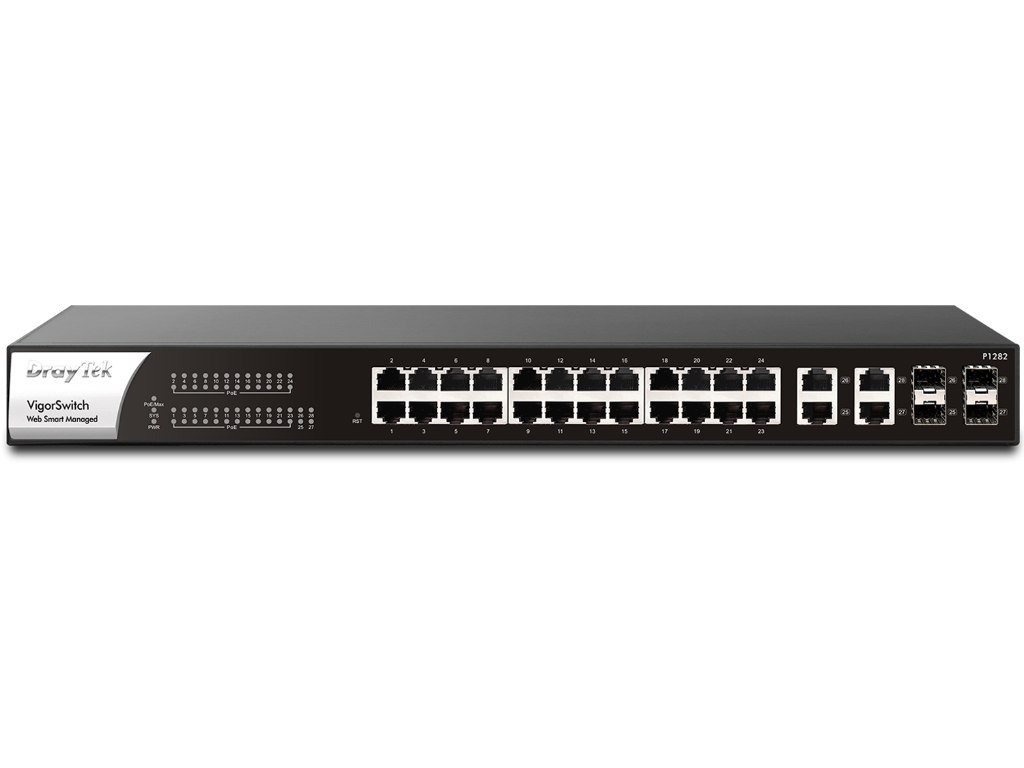

規格
介面 |
|
| LAN 埠 | 24x 10/100/1000 Mbps Gigabit Ethernet, RJ-45 4x Gigabit Ethernet/SFP 組合埠 |
| 按鍵 | 1x 重置鍵 |
PoE |
|
| 支援PoE埠數 | 24 |
| PoE協定 | PoE/PoE+(802.3af/802.3at), Type mode A |
| PoE總供電量 | 400 watts |
| 供電限制 | 有 |
| 排程啟用/停用電源 | 有 |
| 自動重啟電源 | 手動、Ping Watchdog |
效能 |
|
| 封包緩衝區 | 4.2 Mbit |
| 背板頻寬 | 56 Gbps |
| 交換轉送率 | 41.7 Mpps (64 bytes) |
| MAC位址數量 | 8K |
| 巨型封包 | 最大至9KB |
Networking Standards |
|
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.1q Tag-based VLAN 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class of Service 802.1d STP 802.1w RSTP 802.3ad LACP 802.1AB LLDP 802.3az EEE |
VLAN |
|
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based Management VLAN Voice VLAN Surveillance VLAN |
| Port Isolation | 有 |
ONVIF Surveillance |
|
| Discovery | 有 |
| Surveillance Topology | 有 |
| Real-Time Video Streaming | 有 |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
QoS |
|
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit/Shaping | 有 |
Security |
|
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | 有 |
| IP Source Guard | 有 |
| IP Conflict Detection | 有 |
| IP Conflict Prevention | 有 |
| Loop Protection | 有 |
Link Aggregation |
|
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC Address, IP/MAC Address |
Multicast |
|
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | 有 |
Management |
|
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH v2 |
| OpenVPN Client | Certificate-based authentication |
| SNMP | v1, v2c, v3 |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
| LLDP | 有 |
| Syslog | 有 |
| 2-Level Admin Privilege | 有 |
| Multiple Admin Accounts | 有 |
| Managed by VigorRouter SWM | 有 |
| Managed by VigorConnect | 有 |
| Managed by VigorACS | 有 |
| Config File Export/Import | 有 |
| SNTP (Simple Network Time Protocol) | 有 |
| Diagnostics Tools | Port Mirroring, Ping, Cable Test |
物理特性 |
|
| 可安裝於19吋機架 | 內附機架組 |
| 電源 | AC 100-240V @ 6.5A |
| 最大功耗 | 460.3 watts |
| 尺寸 | 440mm x 281.30mm x 44mm |
| 重量 | 4.3 kg (9.6 lb) |
| 操作溫度範圍 | 0 至 50°C |
| 儲存溫度範圍 | -20 至 70°C |
| 操作濕度範圍 | 10 至 90% non-condensing |
| 儲存濕度範圍 | 5 至 90% non-condensing |
| 認證 |   |
