俗稱 GPON / EPON / XGS-PON
單蕊光籤就可以多工 TX RX 都在同一蕊光籤上面
不像傳統還需要兩蕊，一蕊 TX 一蕊 RX
miniGBIC

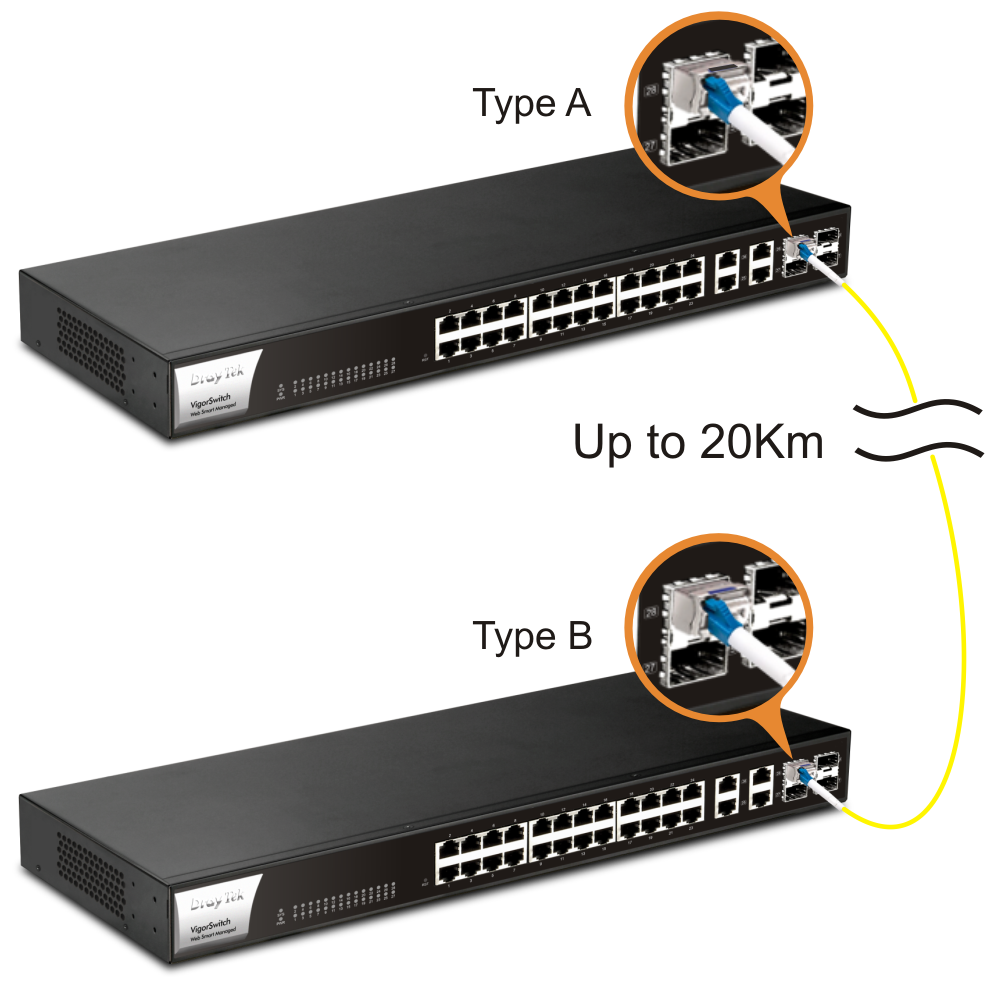

區分 Type A/B 成對使用
Type A : TX1270nm / RX1330nm
Type B : TX1330nm / RX1270nm
單蕊單模LC可以使用
如果現場原本有兩蕊的架構，應該是區分成 TX 一蕊 RX 一蕊
可以使用當中的一蕊就可以了，另外一蕊當備用
或是直接上兩組，設定 LACP 兩蕊同時使用，就可以 10G 兩條分流跑 10G+10G
取代 SFP-10G-LR 雙蕊 SFP+ 模塊
單模單芯光纖
單模光纖模組
單模單纖
光纖模塊
10G SFP+
10G Bidirectional Single-Mode Optical Module
10G 雙向單模光模組
10G LC單模單芯光纖模塊
10G 單蕊光纖
單模10g單芯光纖
HP HPE Aruba
HPE Switch 可以下 Command
switch(config)# allow-unsupported-transceiver
Warning: The use of unsupported transceivers, DACs, and AOCs is at your
own risk and may void support and warranty. Please see HPE Warranty terms
and conditions.
Do you agree and do you want to continue (y/n)? y
| Specification | |
| Support Media | Single-Mode Fiber |
| Connetor | SFP+ |
| Connector Type | Simplex LC |
| Cable Type | SMF |
| Cable Distance | up to 20km |
| Data Rate | 9.95Gb/s to 11.3Gb/s |
| Wavelength | Type A : TX1270nm / RX1330nm Type B : TX1330nm / RX1270nm |
| Transmitter | DFB |
| DOM | Support |
| Protocols | 10GBASE Ethernet, SFF-8431, SFF-8472 |
| Power Supply | 3.3V |
| Power Consumption | < 1watt |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity (non-condensing) | 0°C to 85°C |
| Certificate | RoHS   |
類似中華電信光纖到府
FTTH / FTTB
單蕊 SC LC 光纖架構

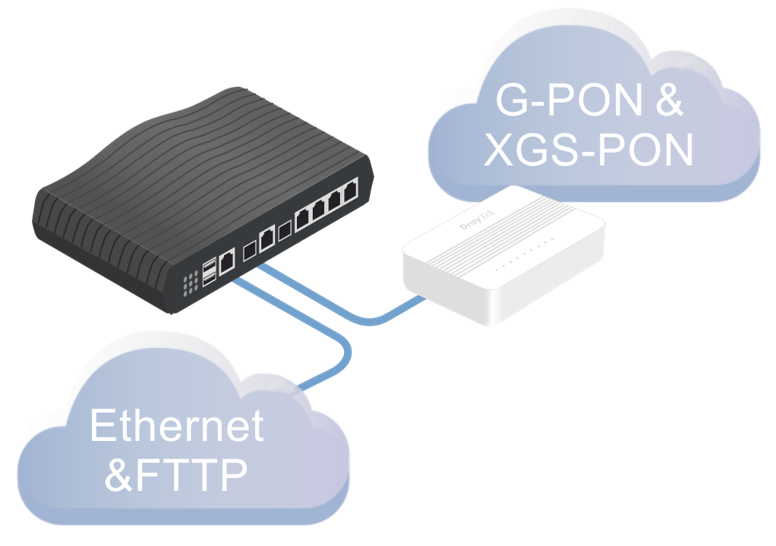

Vigor2928 G-PON / XGS-PON
JL737A Aruba TX1270nm / RX1330nm 10km
JL738A Aruba TX1330nm / RX1270nm 10km
