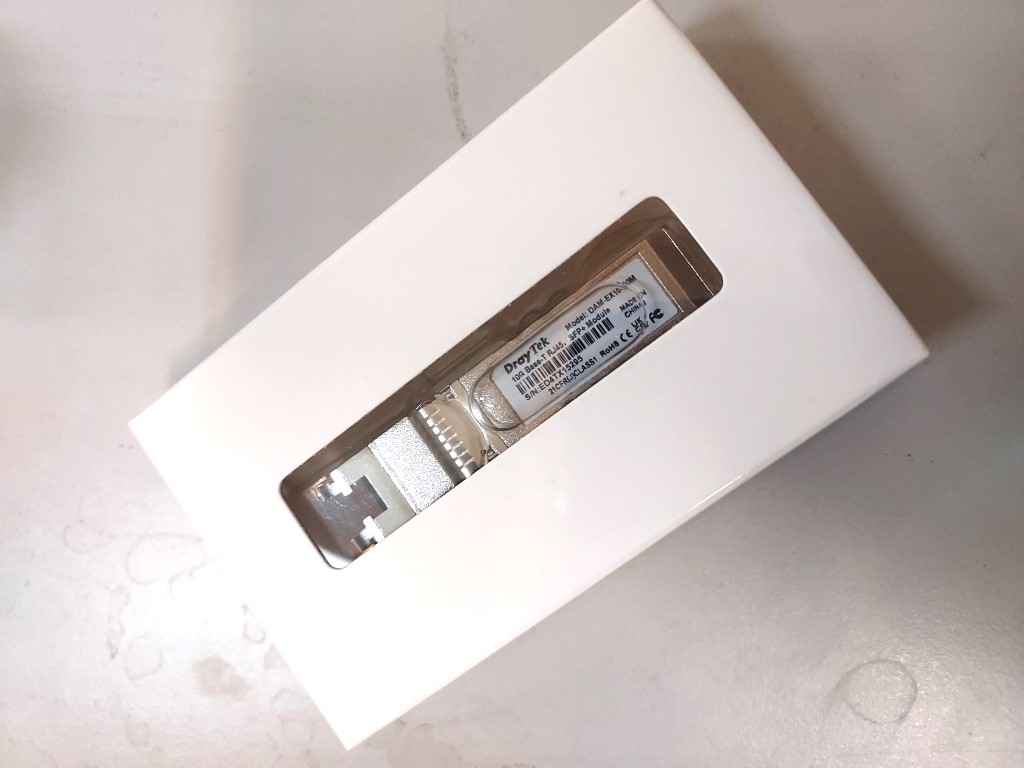

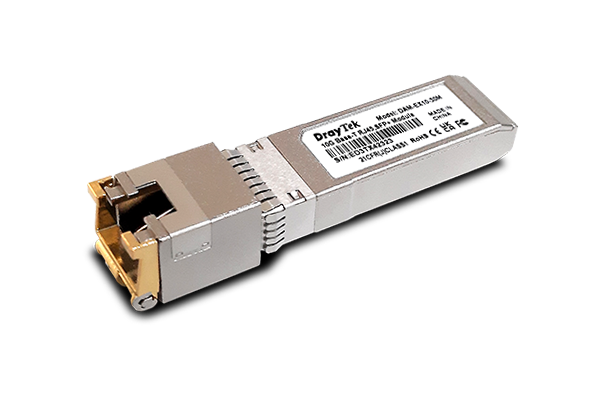

10G Base-T RJ45 SFP+ Module
CAT6A / CAT7 RJ45 網路線，30M米內，速度可達10G
10G Switch 直接轉接 NAS 10G 電口
HP HPE Aruba Networking CX 6300 Switch Series 相容，可以使用
Aruba AOS-CX 作業系統
HPE Switch 可以下 Command
switch(config)# allow-unsupported-transceiver
Warning: The use of unsupported transceivers, DACs, and AOCs is at your
own risk and may void support and warranty. Please see HPE Warranty terms
and conditions.
Do you agree and do you want to continue (y/n)? y
| Specification | |
| Connector Type | RJ-45 |
| Data Rate | 1/2.5/5/10 Gbps |
| Cable Distance | 10G Base-T up to 30m over Cat 6a 5G Base-T/2.5G Base-T up to 50m over Cat 5e 1000 Base-T up to 100m over Cat 5e |
| Hot Swappable | 有 |
| Power Supply | 3.3V |
| Power Consumption | 3.6watt |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity (non-condensing) | 0°C to 85% RH |
| Certificate | RoHS   |
光轉rj45
光轉電
光口轉電口
銅纜模組
RJ45模組
mini-GBIC
電口模塊
10gbe
中性無鎖交換器
網卡
光電轉換器適用
SFP-10G-T
