請留意AP962C/1062C為新世代VigorAP，Mesh不相容AP903、 AP912C、 AP960C、 AP1060C或其它較舊款機型，若您不確定VigorAP間是否相容，建議先與技術客服聯繫。

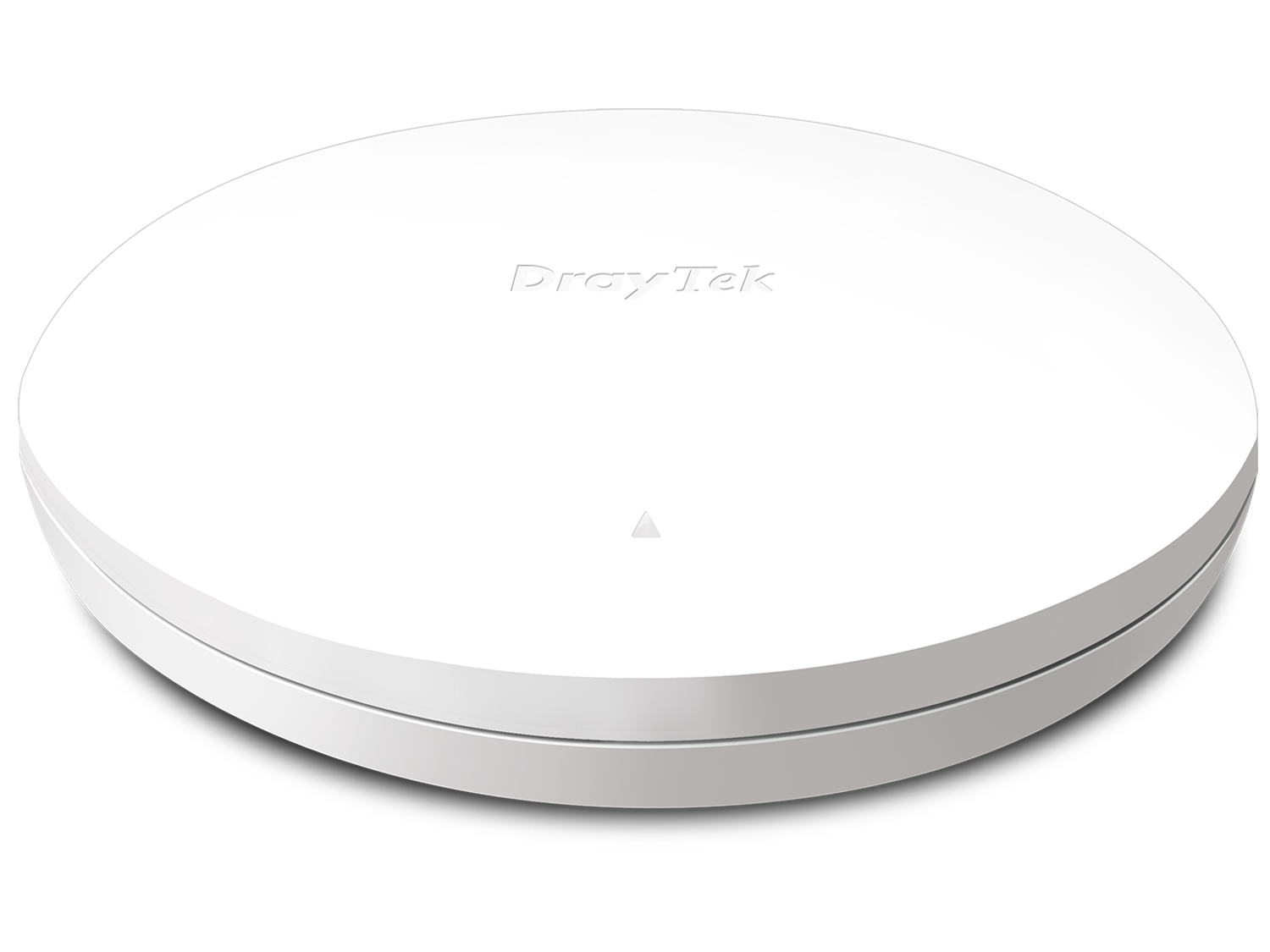

VigorAP 962C
2x3 AX3000 Dual Band WiFi 6 Ceiling AP
WLAN |
|
| Band Type | Dual-Band |
| WiFi 6 | |
| 2.4GHz WLAN | 802.11 b/g/n/ax |
| 5GHz WLAN | 802.11 a/n/ac Wave 2/ax |
| Antennas | 5x Internal PiFA DB |
| 2.4GHz Antenna Gain (dBi) | 4.5 |
| 5GHz Antenna Gain (dBi) | 4.9 |
| 2.4GHz Max. Link Rate (Mbps) | 600 |
| 5GHz Max. Link Rate (Mbps) | 2400 |
| Max. Clients | 256 |
| Operating Mode |
AP
Mesh Root
Mesh Node
Range Extender
|
| Max. Number of SSIDs (per band) | 16 (8) |
| Roaming |
AP-Assisted Roaming
Pre-Authentication
802.11r
802.11v
802.11k
|
| AirTime Fairness | |
| Band Steering | |
| OFDMA | |
| WDS | Repeater |
| WMM | |

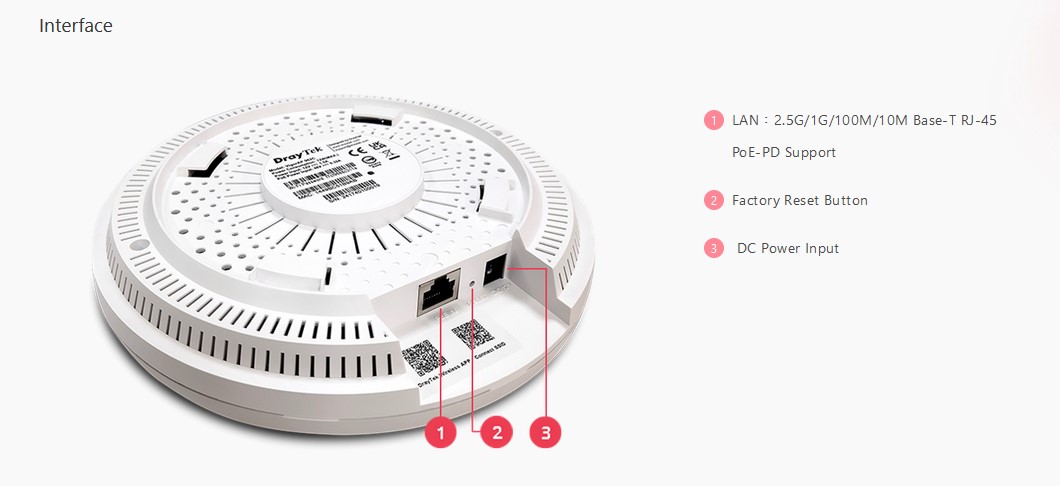

Ports |
|
| 2.5 GbE | 1 |
PoE |
|
| PoE Input Power Supply | 48V @ 0.32A |
| PoE Input | PoE+ (802.3af/at) |
Security |
|
| Security Mode |
OWE
WEP
WPA
WPA2/WPA
WPA2
WPA3/WPA2
WPA3
|
| Authentication | Enterprise, Personal |
| WPS | PBC, PIN |
| MAC Address Filter (Max. entry number) | 256 |
Application |
|
| DHCP |
DHCP Client
DHCP Server
DHCP Relay Agent
|
| Static IP | |
| 802.1q tag-based VLAN | |
| Schedule |
WiFi Up/Down
|
Management |
|
| Local Service |
HTTP
HTTPS
Telnet
|
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Config Backup/Restore | |
| Syslog | |
| SNMP | v1, v2c, v3 |
| Stand-Alone Operation | |
| Mesh | Node, Root |
| Central AP Management (Number of manageable APs) | 20 |
| VigorRouter Management (APM) | |
| VigorACS Management (Since f/w) | V1.5.4 |
Physical |
|
| Environment | Indoor |
| Mounting | Wall / Ceiling |
| Powered via | DC / PoE |
| Power Input | 12V DC @ 1.5A |
| Max. Power Consumption (watts) | 12 |
| Dimension (mm) | 190 x 190 x 30 |
| Weight (g) | 390 |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity (non-condensing) | 10 to 90% |
