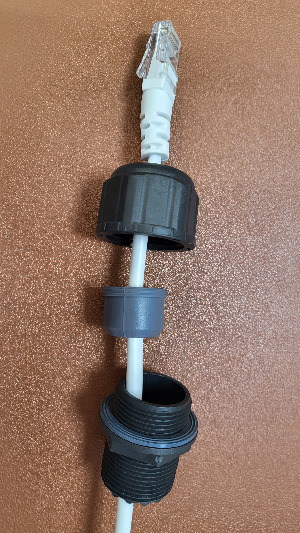

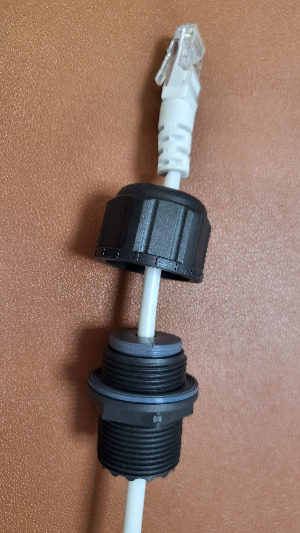

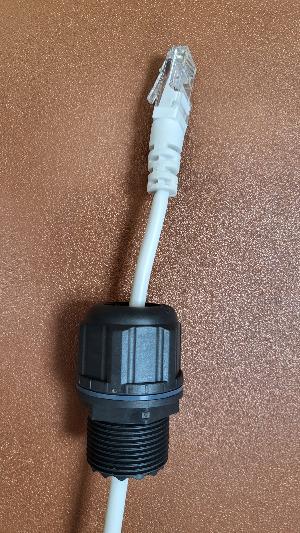

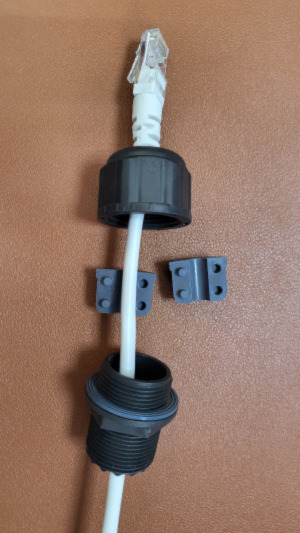

拔網路線，請使用小一字壓網路線的壓扣頭
產地 : 台灣
機型
- VigorAP 918r
- VigorAP918rpd (需要 PoE+ 供電)
規格
| 介面 | |
| LAN埠 | 1x 10/100/1000Base-T Ethernet, RJ-45, PoE-In 1x 10/100/1000Base-T Ethernet, RJ-45, PoE-Out (RPD型號) |
| 天線 | 2x 雙頻dipole外部天線 增益: 5 dBi for 5GHz, 3.5 dBi for 2.4GHz 1x 11 dBi 5GHz 指向型板狀天線 (RPD型號) |
| 內建感測器 | 溫度計, 溼度計 |
| 按鈕 | 1x 重置鍵 |
| WLAN | |
| 2.4GHz標準 | IEEE 802.11b/g/n 2x2 MIMO |
| 5GHz標準 | IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO |
| 2.4GHz 最高速度 | 400 Mbps |
| 5GHz 最高速度 | 867 Mbps |
| 連線設備數量 | 256 (每個頻段128個) |
| 操作模式 | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| Airtime Fairness | 有 |
| Band Steering | 有 |
| Auto Channel Selection | 有 |
| Max. Number of SSID | 8 (4 per radio band) |
| WDS | 有 |
| Bandwidth Limit per Station | 有 |
| Client Number Limit | Per radio, Per SSID |
| Connection Time Control | 有 |
| WMM | 有 |
| IGMP Snooping | 有 |
| Security | |
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | 有 |
| MAC Address Filter | Up to 256 entries |
| Wireless Client Isolation | 有 |
| Mobile Device Management | 有 |
| Application | |
| Built-in RADIUS Server | 有 |
| RADIUS Proxy | PEAP, EAP-TLS |
| Hotspot Web Portal | 有 |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | 有 |
| MAC Clone | 有 |
| 802.1q VLAN | 有 |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
| Management | |
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, DHCP Table, Interference Monitor |
| Notification Alert | |
| SNMP | v2, v2c, v3 |
| Syslog | 有 |
| Managed by VigorConnect | 有 |
| Managed by VigorACS | 有 |
| Central AP Management | 30 VigorAP |
| 物理特性 | |
| 適用環境 | 戶外 |
| 安裝方式 | 壁掛式 / 柱掛式 |
| 電源輸入 | DC 48V-56V |
| 最大電耗(含PoE輸出) | 43.2瓦 (RPD型號) |
| 最大電耗(不含PoE輸出) | 18瓦 |
| 尺寸 | 243 mm x 161 mm x 72 mm |
| 重量 | 0.9 kg |
| 操作溫度範圍 | -40 至 70°C |
| 儲存溫度範圍 | -40 至 85°C |
| 操作濕度範圍 | 5 至 95% non-condensing |
| 安規認證 |   |
| NCC 證號 | CCAP18LP0957T2 (RPD型號) |
非陸製
