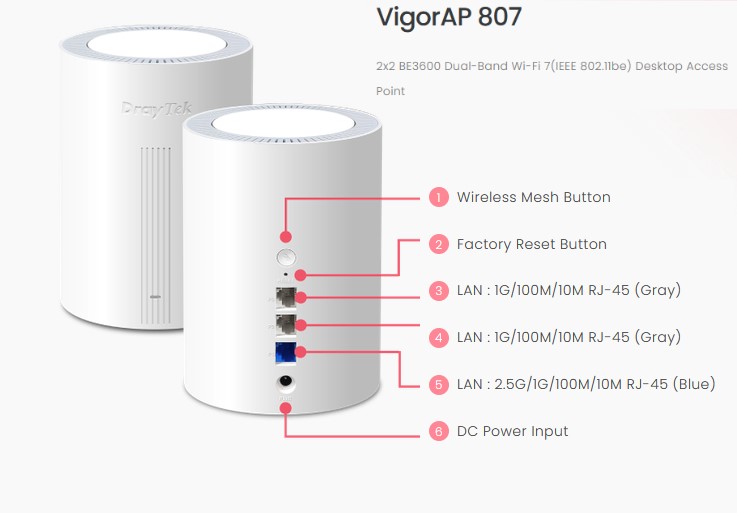

Ports |
|
| 1 GbE | 2 |
| 2.5 GbE | 1 |
LAN |
|
| DHCP |
DHCP Client
DHCP Server
DHCP Relay Agent
|
| Static IP | 有 |
| Bind IP to MAC | 有 |
| 802.1q tag-based VLAN | 有 |
WLAN |
|
| Band Type | Dual-Band |
| Wi-Fi 7 | 有 |
| 4K-QAM | 有 |
| Multi-link Operation (MLO) | 有 |
| OFDMA | 有 |
| Max. Clients | 256 |
| 2.4GHz WLAN |
802.11 b/g/n/ax/be
|
| 5GHz WLAN |
802.11 a/n/ac Wave 2/ax/be
|
| Antennas | 5 x Internal (2x 2.4 GHz + 3x 5GHz) |
| 2.4GHz Antenna Gain (dBi) | 4.2 |
| 5GHz Antenna Gain (dBi) | 5.1 |
| 2.4GHz Max. Link Rate (Mbps) | 688 |
| 5GHz Max. Link Rate (Mbps) | 2880 |
| Operating Mode |
AP
Mesh Root
Mesh Node
Range Extender
|
| Max. Number of SSIDs (per band) | 16 (8) |
| MAC Address Filter (Max. entry number per SSID) | 128 |
| Security Mode |
OWE
WPA
WPA2/WPA
WPA2
WPA3/WPA2
WPA3
|
| Authentication | Enterprise, Personal |
| WMM | 有 |
| AirTime Fairness | 有 |
| Band Steering | 有 |
| Roaming |
AP-Assisted Roaming
Pre-Authentication
802.11r
802.11v
802.11k
|
| WPS | PBC, PIN |
Objects |
|
| MAC Object | 有 |
| MAC Group | 有 |
| Schedule | 有 |
APP Notifications |
|
| System |
WUI/SSH/Telnet Login
|
| Wireless LAN |
Mesh Node online/offline
|
Authentication |
|
| RADIUS Authentication | 有 |
Certificates |
|
| Local Certificates | 有 |
| Trusted CA | 有 |
| Local Services | 有 |
| Backup & Restore | 有 |
Monitoring |
|
| DHCP Table | 有 |
| ARP Table | 有 |
| LLDP Neighbors information | 有 |
| Web Syslog | 有 |
| Internet Detection | 有 |
| Clients List | 有 |
Utility |
|
| Ping Tool | 有 |
| Trace Tool | 有 |
| Web CLI | 有 |
System Maintenance |
|
| Syslog | 有 |
| SNMP | v1, v2c, v3 |
| Firmware Upgrade | TFTP, TR-069, WUI |
| Backup/Restore | 有 |
| Role-based Privilege | 有 |
| System Reboot | 有 |
Management |
|
| Service Control |
HTTP
HTTPS
Telnet
|
| TR-069 |
ACS and CPE Settings
|
| Mesh | Node, Root |
| Virtual AP Controller (Device up to) | 20 |
| VigorConnect Management (Since f/w) | * |
| VigorACS Management (Since f/w) | V5.1.0 |
Physical |
|
| Environment | Indoor |
| Mounting | Desktop |
| Powered via | DC |
| Power Input | 12V DC @ 1A |
| Max. Power Consumption (watts) | 12 |
| Dimension (mm) | 110 x 110 x 154.5 |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity (non-condensing) | 10 to 90% |
- * : Future Support
- The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
