請留意AP905/AP962C/1062C為新世代VigorAP，Mesh不相容AP903、 AP912C、 AP960C、 AP1060C或其它較舊款機型，若您不確定VigorAP間是否相容，建議先與技術客服聯繫。

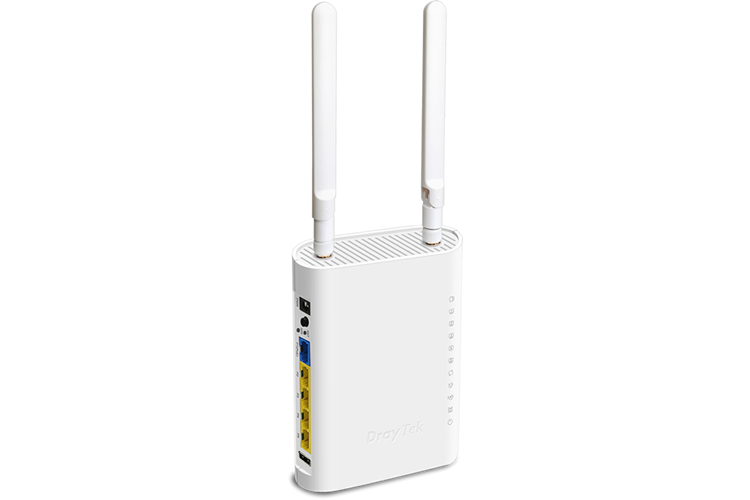

VigorAP 905
2x3 AX3000 Dual Band WiFi 6 AP
VigorAP 905 is 11ax wall-mount/desktop wireless access point with 1x 2.5GbE and 4x 1GbE Ports. With a link rate of 600Mbps on the 2.4GHz band and a 2400Mbps on the 5GHz band, it's suitable for high density environments. It can be cloud-maged by VigorACS, and also act as the mesh Root AP to manage up to 20 devices.
ㆍAX3000 Dual-Band
ㆍDesktop/Wall Mount
ㆍPowered by DC/PoE
ㆍ2.5GbE Port x1，1Gbe x4
ㆍAP Manage 20台 Mesh v2
介面 |
|
| LAN埠 | 1x 2.5G/1G/100M/10M Ethernet RJ-45 (藍色) (支援 PoE-PD) 4x 1G/100M/10M RJ-45 (黃色) |

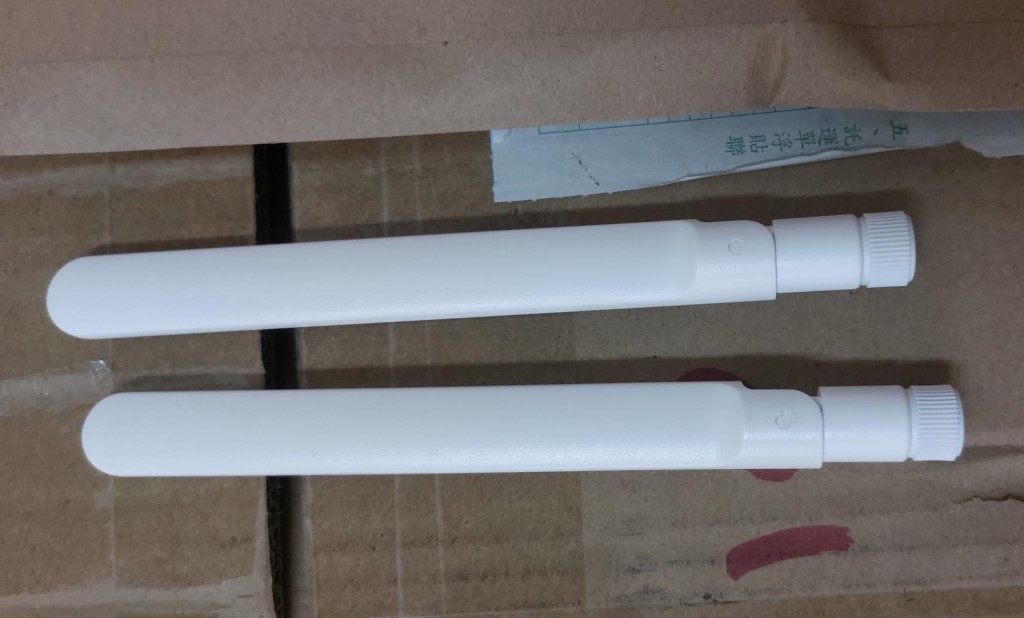

| 天線 | 2x 外部 Dipole 雙頻 增益: 5.72 dBi for 5GHz, 1.87 dBi for 2.4GHz 1x 內建PIFA 5G |
| 按鈕 | 1x 重置鍵 |
| 電源孔 | 1 |
LAN |
|
| DHCP | DHCP, Client, DHCP Server, DHCP Relay Agent |
| Static IP | |
| Bind IP to MAC | |
| 802.1q tag-based VLAN | |
WLAN |
|
| 頻段 | 雙頻 |
| WiFi 6 | |
| OFDMA | |
| 連線設備數量 | 256 |
| 2.4GHz Standard | 802.11b/g/n/ax |
| 5GHz Standard | 802.11a/n/ac Wave 2/ax |
| 2.4GHz最高速度 | 600 Mbps |
| 5GHz最高速度 | 2400 Mbps |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Max. Number of SSID (per band) | 16 (8) |
| WMM | |
| AirTime Fairness | |
| Band Steering | |
| Roaming | AP-Assisted Roaming, Pre-Authentication, 802.11r, 802.11v, 802.11k |
| WDS | Repeater |
Security |
|
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, WPA, WEP, OWE |
| Authentication | Enterprise, Personal |
| WPS | PIN Code, WPS Button |
| MAC Address Filter (Max. entry number) | 128 |
Management |
|
| Local Service | HTTP, HTTPS, Telnet |
| Firmware Upgrade | TFTP, TR-069, WUI |
| Configuration Backup/Restore | |
| Syslog | |
| SNMP | v1, v2c, v3 |
| Mesh | Root, Node |
| Virtual AP Controller (Device up to) | 20 |
| VigorConnect Management (Since f/w) | V5.0.4 |
| VigorACS Management (Since f/w) | V5.0.4 |
PoE |
|
| PoE Input Power Supply | 48V @ 0.45A |
| PoE Input | PoE+ (802.3af/at) |
物理特性 |
|
| 適用環境 | 室內 |
| 安裝方式 | 壁掛式 / 桌立式 |
| 供電方式 | DC / PoE |
| 電源輸入 | 12V DC @ 1.5A |
| 最大電耗 (watts) | 17 |
| 尺寸 (mm) | 115 x 158 x 40 |
| 操作溫度範圍 | 0 至 40°C |
| 儲存溫度範圍 | -20 至 60°C |
| 操作濕度範圍 (non-condensing) | 10 至 90% |
備註 :
-
*: 未來支援
-
規格如有更改，恕不另行通知。
-
以上列出的各項效能表現數據皆是最大值，在居易科技內部搭配最佳網路環境下所測得，實際測得的效能表現數據會因為不同的網路環境與運行的服務或軟體而有不同。
ChatGPT Ai 產生的圖

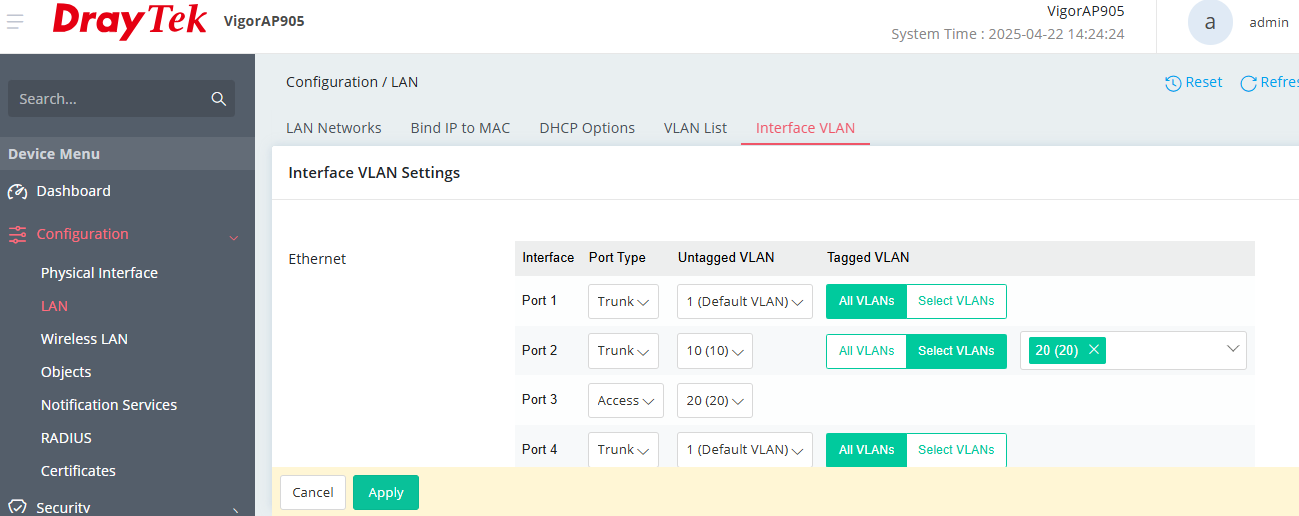

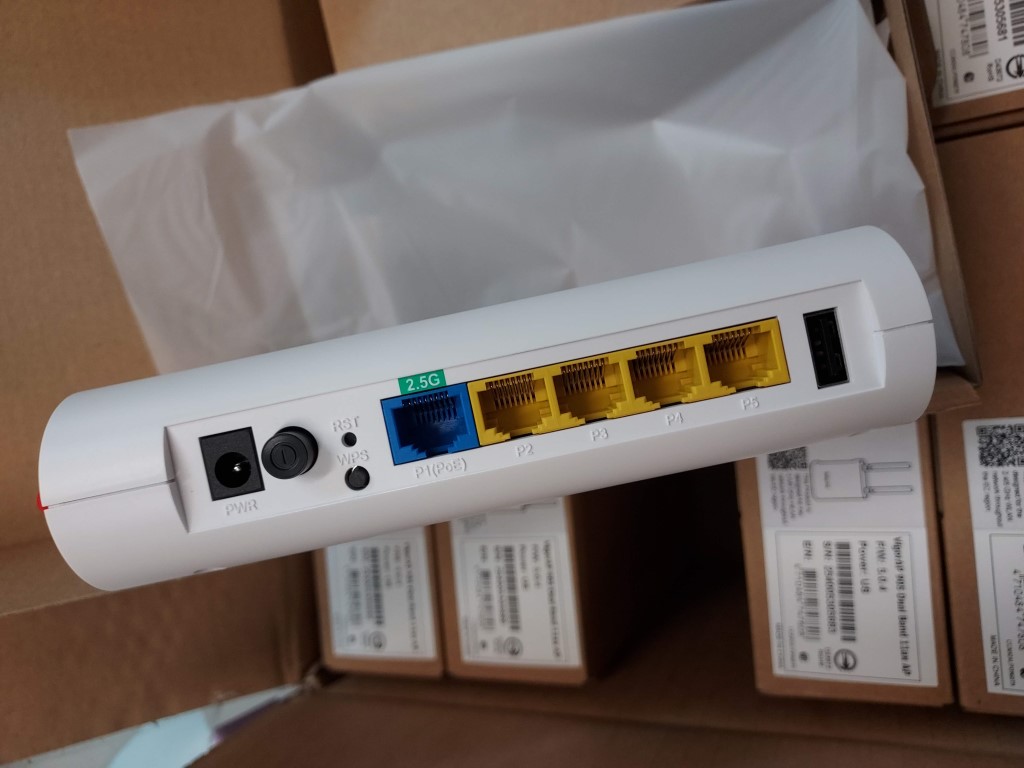

5個實體port
可以切 vlan
tag
untag
Trunk
Access

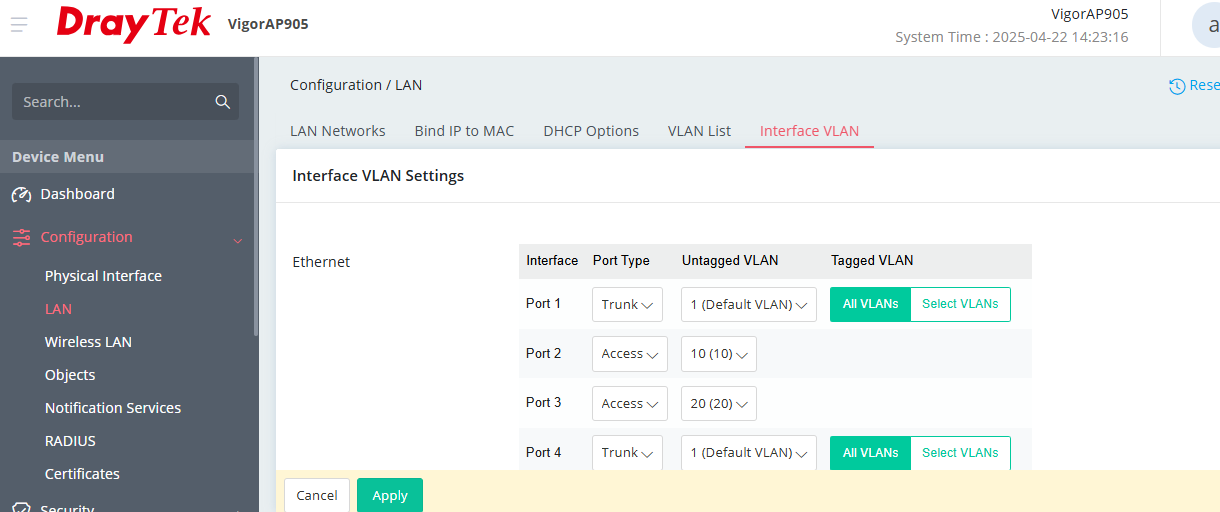

Configuration
LAN
Interface VLAN
切VLAN
VigorAP 905

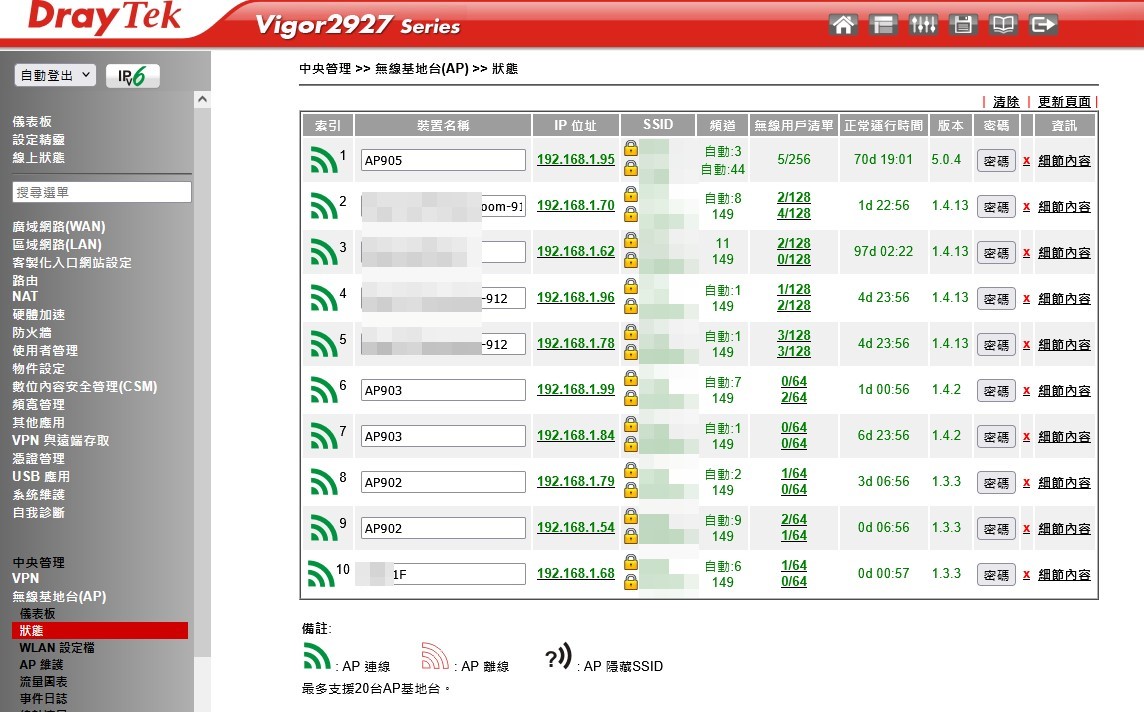

Vigor2927 VigorAP
APM
