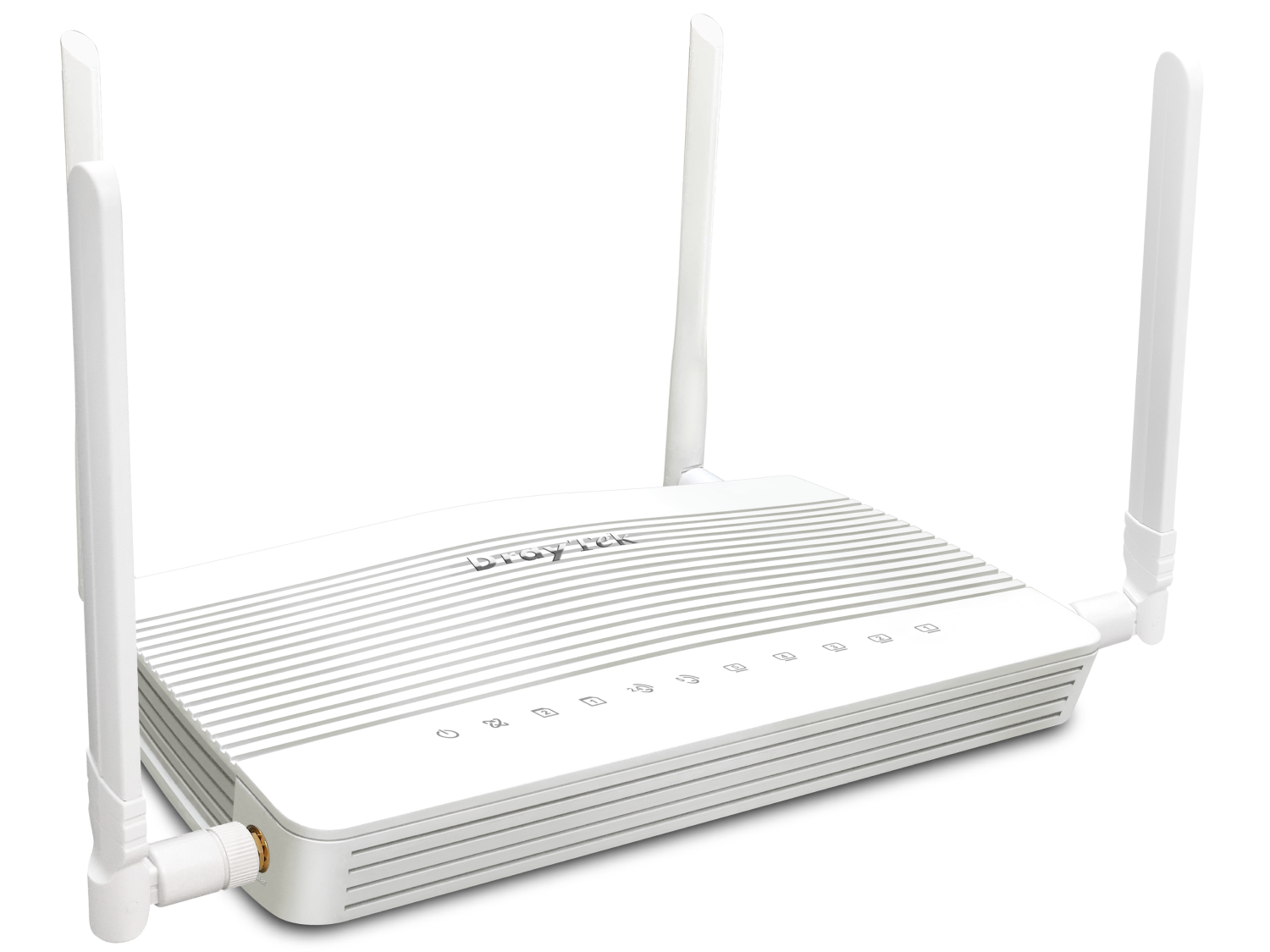

4根天線，請確實鎖上，才開機使用
5G Sim Card 相容於 4G Sim Card 可以安裝在本機使用
DEKRA 通過 TAF ISO/IEC 17025：2017；CNS 17025：2018
關鍵電信基礎設施資通設備資通安全檢測技術規範
LTE Category 6
LTE FDD Band B1,3,7,8,20,28，台灣區 : 3(1800MHz), 7(2600MHz), 8(900MHz), 28(700MHz)
LTE TDD Band B38,40
LTE Max Data Rate 300Mbps(DL)/50Mbps(UL)
WCDMA 3G Band B1,8
1.4G LTE 雙 SIM Card
2.2WAN 16條VPN通道
3.可和同廠牌AP建立 mesh 網路

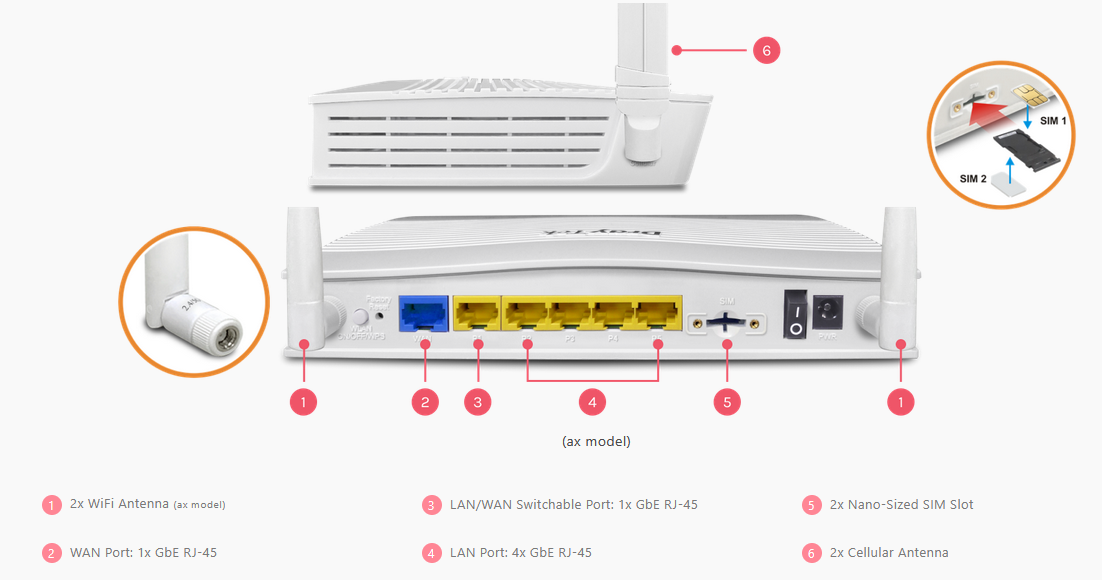

4.LAN/WAN 可切換埠: 1x GbE RJ-45
5.支援 L2TP over IPSec VPN
6.提供hotspot web portal
7.支援TR-069 統一管理功能
Model |
Vigor C410 |
Vigor C410ax |
Performance |
||
| NAT Session | 50K | |
| Max. NAT (Mbps) | 940 | |
WAN |
||
| Ethernet (GbE) | 2 | |
|
Ethernet - LAN/WAN Switchable
|
有 | |
| Cellular (Built-in) | 4G | |
| Wireless WAN (2.4GHz + 5GHz) | 無 | 有 |
3G |
||
| WCDMA (3G) Band | 1, 8 | |
4G LTE |
||
| SIM Slot | 2 | |
| LTE Antenna (External) | 2 | |
| LTE Category (Up to) | CAT.6 | |
| Max. Rx Link Rate (Mbps) | 300 | |
| Max. Tx Link Rate (Mbps) | 50 | |
| FDD Band | 1(2100MHz), 3(1800MHz), 7(2600MHz), 8(900MHz), 20(800MHz), 28(700MHz) | |
| TDD Band | 38(2600MHz), 40(2300MHz) | |
Internet Connection |
||
| IPv4 |
PPPoE
DHCP
Static IP
|
|
| IPv6 |
PPP
DHCPv6
Static IPv6
TSPC
6rd
6in4 Static Tunnel
|
|
| 802.1p/q Multi-VLAN Tagging | 有 | |
| Failover | 有 | |
| Connection Detection | ARP, Ping | |
| WAN Data Budget | 有 | |
| Dynamic DNS | 有 | |
| DrayDDNS | 有 | |
LAN |
||
| Fixed LAN (RJ-45, GbE) | 4 | |
| LAN Subnet | 4 | |
| VLAN |
802.1q Tag-based VLAN
Port-based VLAN
|
|
| Max. Number of VLAN | 8 | |
| DHCP Server |
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
|
|
| Wired 802.1x Authentication | 有 | |
| Port Mirroring | * | |
| Local DNS Server | 有 | |
| Conditional DNS Forwarding | 有 | |
| Hotspot Web Portal (Profile No.) | 2 | |
| Hotspot Authentication |
Click-Through
External Portal Server
|
|
WLAN |
||
| 2.4GHz WLAN | 802.11ax 2x2 MIMO | |
| 5GHz WLAN | 802.11ax 3x3 MU-MIMO | |
| WiFi Antenna (External) | 2 | |
| WiFi Antenna (Internal) | 1 | |
| Antenna Spec | 2 x DB External Dipole + 1 x 5GHz Internal PIFA | |
| 2.4GHz Antenna Gain (dBi) | 2.1 | |
| 5GHz Antenna Gain (dBi) | 2.8 | |
| 2.4GHz Max. Link Rate (Mbps) | 574 | |
| 5GHz Max. Link Rate (Mbps) | 2402 | |
| Max. Number of SSIDs per band | 8 | |
| Security Mode |
OWE
WEP
WPA
WPA2
WPA2/WPA
WPA3
WPA3/WPA2
|
|
| Authentication | Pre-Shared Key | |
| WiFi 6 | 有 | |
| OFDMA | 有 | |
| Roaming |
Assisted Roaming
|
|
| WPS | WPS Button, PIN Code | |
| WDS | Repeater | |
| Access Control |
Access List
Client Isolation
Hide SSID
WLAN Scheduling
|
|
| AirTime Fairness | 有 | |
| Band Steering | 有 | |
| WMM | 有 | |
| Mesh (5GHz Only) | Root | |
Networking |
||
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
OSPF(V2/V3)
BGP
|
|
| Policy-based Routing |
Protocol
IP Address
Port
|
|
| DNS Security (DNSSEC) | 有 | |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
|
| Local RADIUS server | 有 | |
Bandwidth Management |
||
| Traffic Shaping Policy | 有 | |
| IP-based Bandwidth Limit | 有 | |
| IP-based Session Limit | 有 | |
| QoS (Quality of Service) |
IP Address
Port
Application
|
|
| APP QoS | 有 | |
| Default Policy | 有 | |
| VoIP Prioritization | 有 | |
Management |
||
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069
|
|
| Config Backup/Restore | 有 | |
| Firmware Upgrade | TFTP, HTTP, TR-069 | |
| Role-based Privilege | 有 | |
| Access Control | Access List, Brute Force Protection | |
| Notification Alert | SMS, E-mail | |
| SNMP | v1, v2c, v3 | |
| Syslog | 有 | |
| Virtual AP Controller (Device up to) | 20 | |
| Mesh (Number of manageable APs) | 無 | 7 |
| Virtual Switch Controller | 5 | |
| VigorACS (Since f/w) | V5.3.1 | |
Security |
||
| IP Reputation Filter | 有 | |
| Firewall Filter |
IP
Content
Traffic
|
|
| Defense Setup |
ARP Spoofing
IP Spoofing
|
|
| MAC Filtering Profile | 有 | |
| IPv6 Address Security | 有 | |
IAM |
||
| Users & Groups | 有 | |
| Access Policies | 有 | |
| Group Policies | 有 | |
| Conditional Access Policy | 有 | |
| Resources | 有 | |
| Account Status | 有 | |
| Backup and Restore | 有 | |
VPN |
||
| Site-to-Site VPN | 有 | |
| Teleworker VPN | 有 | |
| EasyVPN | 有 | |
| Protocols |
IPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
WireGuard
|
|
| Max. VPN Tunnels | 16 | |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 370 | |
| User Authentication |
Local
RADIUS
TACACS+
mOTP
TOTP
|
|
| IKE Authentication | Pre-Shared Key, X.509 | |
| IPsec Authentication | SHA-1, SHA-256 | |
| Encryption |
DES
3DES
AES
|
|
| Single-Armed VPN | 有 | |
| NAT-Traversal (NAT-T) | 有 | |
| VPN Connection Status | 有 | |
| Backup & Restore | 有 | |
Monitoring |
||
| Clients List | 有 | |
| Log Center | 有 | |
| Wireless Information | 有 | |
| WAN | 有 | |
| ARP Table | 有 | |
| Route Table | 有 | |
| DHCP Table | 有 | |
| IPv6 TSPC Status | 有 | |
| IPv6 Neighbor Table | 有 | |
| DNS Cache Table | 有 | |
| PPPoE Pass-Through | 有 | |
| Session Table | 有 | |
Physical |
||
| Power Input | DC 12V @ 0.7A | DC 12V @ 1.4A |
| Max. Power Consumption (watts) | 8.3 | 16.2 |
| Dimension (mm) | 207 x 131 x 42 | |
| Operating Temperature | 0 to 45°C | |
| Storage Temperature | -25 to 70°C | |
| Operating Humidity (non-condensing) | 10 to 90% | |
Note:
- * : Future Support

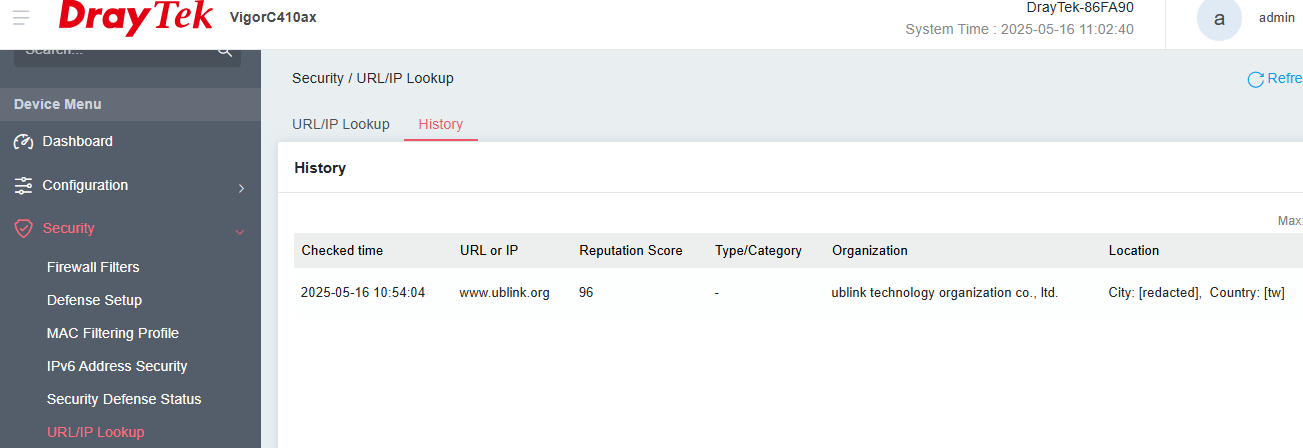

Security
URL/IP Lookup
連線的 URL 安全評分 分級表 分數表
DEKRA 通過 TAF ISO/IEC 17025：2017；CNS 17025：2018

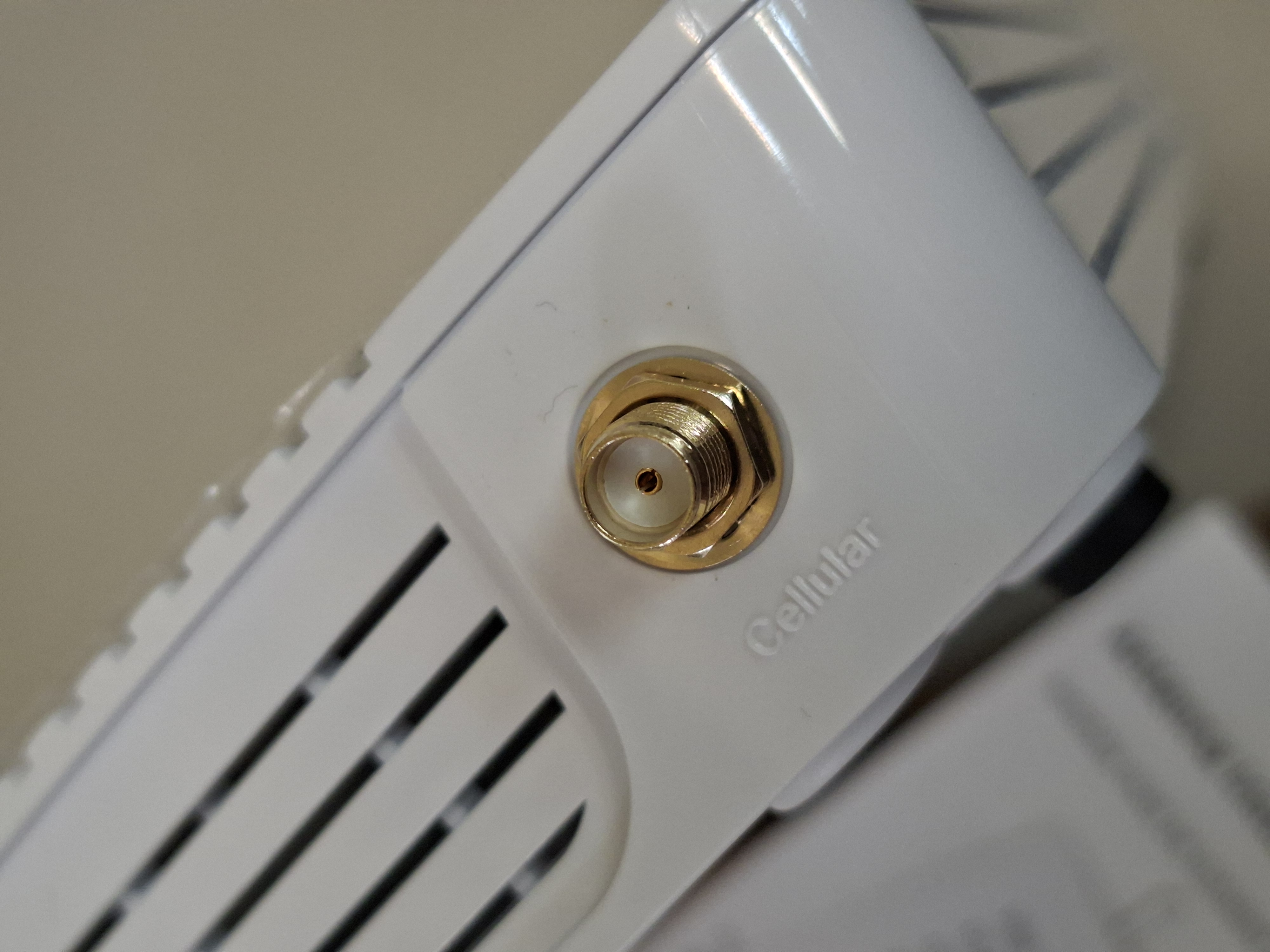

4G LTE 天線接頭，雙母座，母座母針
外接天線的頭是 SMA male SMA內針 公針
WLAN 天線接頭，母座公針
外接天線是 SMA內孔
醫院攝影車採用，產地台灣
telnet command 發簡訊 SMS
Support sending SMS via CLI command:
exec lte send <phone_number> <message>
Example: exec lte send +441234567890 Hello
