產地 : 台灣
規格
介面 |
|

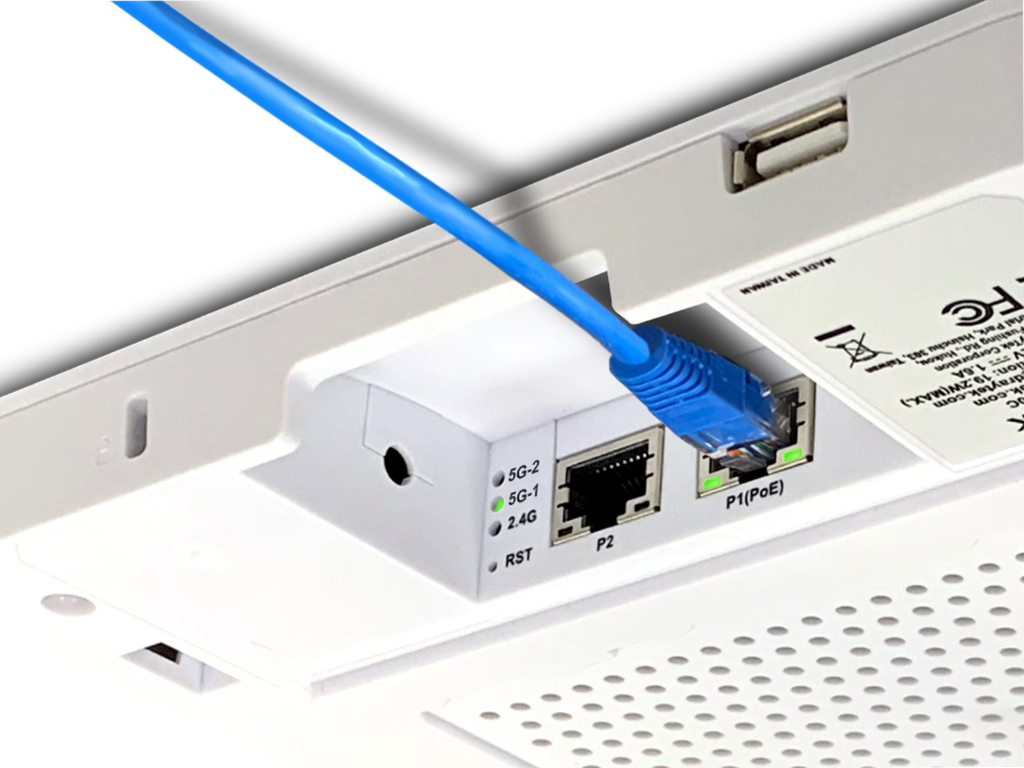

| LAN埠 | 2x 10/100/1000M Base-T, RJ-45 (P1 支援 PoE-PD) |
| USB埠 | 1x USB2.0 Type A |
| 天線 | 2x 內建PiFA 2.4G天線, 4x 內建PiFA 5G天線 增益: 2 dBi for 5GHz, 1 dBi for 2.4GHz |
| 指示燈 | 4x LED 1x 內建蜂鳴器 |
| 按鈕 | 1x 重設按鈕 |
| 電源孔 | 1 |
| 安全鎖 | 1 |
WLAN |
|
| 2.4GHz Standard | IEEE 802.11b/g/n 2x2 MIMO |
| 5GHz Standard | IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO |
| 2.4GHz 最高速度 | 400 Mbps |
| 5GHz 最高速度 | 867 Mbps |
| 5GHz-2 最高速度 | 867 Mbps |
| 連線設備數量 | 384 (128 per radio band) |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| AirTime Fairness | 有 |
| Band Steering | 有 |
| Auto Channel Selection | 有 |
| Max. Number of SSID | 12 (4 per radio band) |
| WDS | 有 |
| Bandwidth Limit per Station | 有 |
| Client Numer Limit | Per radio, Per SSID |
| Connection Time Control | 有 |
| WMM | 有 |
| IGMP Snooping | 有 |
Security |
|
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | 有 |
| MAC Address Filter | Up to 384 entries |
| Wireless Client Isolation | 有 |
| Mobile Device Management | 有 |
Application |
|
| Built-in RADIUS Server | 有 |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | 有 |
| MAC Clone | 有 |
| 802.1q VLAN | 有 |
| iOS Keep Alive | 有 |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off, Sound Buzzer |
Management |
|
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, Interference Monitor, Where Am I |
| Configuration Backup and Restore | 有 |
| Syslog | 有 |
| Mail Alert | 有 |
| SNMP | v1, v2c, v3 |
| Managed by VigorConnect | 有 |
| Managed by VigorACS | 有 |
物理特性 |
|
| 適用環境 | 室內 |
| 安裝方式 | 吸頂式, 壁掛式 |
| 供電方式 | DC 12V @ 2A / 802.3af/at PoE |
| 最大電耗 | 19.2 watts |
| 尺寸 | 176 mm x 176 mm x 30 mm |
| 重量 | 460 g |
| 操作溫度範圍 | 0 至 45°C |
| 儲存溫度範圍 | -25 至 70°C |
| 操作濕度範圍 | 10 至 90% non-condensing |
| 安規認證 |   |
| NCC 證號 | CCAQ20LP0061T0 |
非陸製
