產地 : 台灣
規格

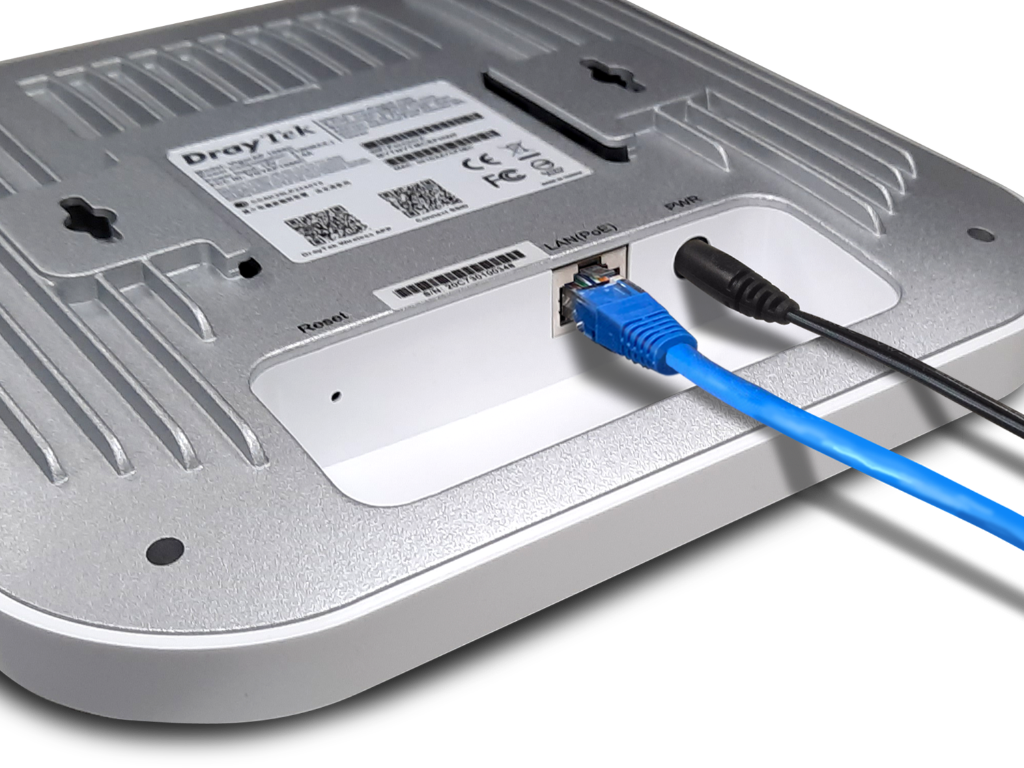

介面 |
|
| LAN埠 | 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (PoE-PD Support) |
| 天線 | 4x 內建PiFA單頻(2.4G) 4x 內建PiFA單頻(5G) 增益: 5.1 dBi for 5GHz, 5 dBi for 2.4GHz 1x 內建PCB雙頻(for 頻道偵測) 增益: 5.8 dBi for 5GHz, 4.3 dBi for 2.4GHz |
| 按鈕 | 1x 重置鍵 |
| 電源孔 | 1 |
| 安全鎖 | 1 |
WLAN |
|
| WiFi 6 | 有 |
| 2.4GHz Standard | IEEE 802.11b/g/n/ax 4x4 MIMO, up to 1024-QAM |
| 5GHz Standard | IEEE 802.11a/n/ac Wave 2/ax 4x4 MU-MIMO, up to 1024-QAM |
| 2.4GHz最高速度 | 1200 Mbps |
| 5GHz最高速度 | 2400 Mbps |
| 連線設備數量 | 256 (每個頻段128個) |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication, 802.11r |
| AirTime Fairness | 有 |
| Band Steering | 有 |
| Au至 Channel Selection | 有 |
| Max. Number of SSID | 16 (8 per radio band) |
| WDS | 有 |
| Client Numer Limit | Per radio, Per SSID |
| Connection Time Control | 有 |
| WMM | 有 |
| IGMP Snooping | 有 |
Security |
|
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | 有 |
| MAC Address Filter | Up 至 256 entries |
| Wireless Client Isolation | 有 |
| Mobile Device Management | 有 |
Application |
|
| Built-in RADIUS Server | 有 |
| RADIUS Proxy | PEAP, EAP-TLS |
| Hotspot Web Portal | 有 |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | 有 |
| MAC Clone | 有 |
| 802.1q VLAN | 有 |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
Management |
|
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics |
| Configuration Backup and Restore | 有 |
| Syslog | 有 |
| Mail Alert | 有 |
| SNMP | v1, v2c, v3 |
| Managed by VigorACS | 有 |
| Managed by VigorConnect | 有 |
| Central AP Management | 50 VigorAP |
物理特性 |
|
| 適用環境 | 室內 |
| 安裝方式 | 吸頂式, 壁掛式 |
| 供電方式 | DC 12V @ 2.5A / 802.3af/at PoE |
| 最大電耗 | 21 watts |
| 尺寸 | 205 mm x 205 mm x 33.2 mm |
| 重量 | 809 g |
| 操作溫度範圍 | 0 至 40°C |
| 儲存溫度範圍 | -20 至 70°C |
| 操作濕度範圍 | 5 至 90% non-condensing |
| 安規認證 |    |
| NCC 證號 | CCAK20LP2440T0 |
非陸製
