介面 |
|

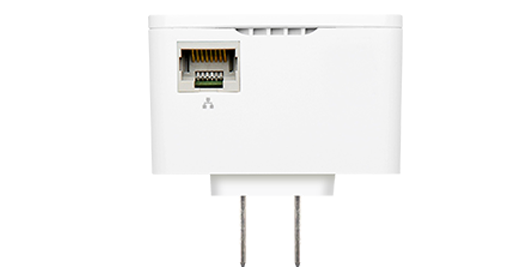

| LAN埠 | 1x 10/100/1000M Base-T, RJ-45 |
| 天線 | 2x 內建倒F型雙頻天線 (PiFA) 增益: 4.79 dBi for 5GHz, 3.35 dBi for 2.4GHz |
| 按鈕 | 1x LED開關 |
WLAN |
|
| 2.4GHz標準 | IEEE 802.11b/g/n |
| 5GHz標準 | IEEE 802.11a/n/ac |
| MIMO | 2x2 (2-stream) |
| 2.4GHz最高速度 | 300 Mbps |
| 5GHz最高速度 | 867 Mbps |
| 連線設備數量 | 64 (每個頻段32個) |
| 操作模式 | AP, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| Airtime Fairness | 有 |
| Band Steering | 有 |
| Auto Channel Selection | 有 |
| Max. Number of SSID | 4 (2 per band) |
| WDS | 有 |
| Bandwidth Limit per Station | 有 |
| Client Number Limit | Per radio, Per SSID |
| Connection Time Control | 有 |
| WMM | 有 |
| IGMP Snooping | 有 |
Security |
|
| Security Mode | WPA2, WPA2/WPA, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | 有 |
| MAC Address Filter | Up to 64 entries |
| Wireless Client Isolation | 有 |
| Mobile Device Management | 有 |
Application |
|
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP Client | 有 |
| Static IP | 有 |
| MAC Clone | 有 |
| 802.1q VLAN | 有 |
| iOS Keep Alive | 有 |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
Management |
|
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorConnect, VigorAP Mesh Root |
| Tools | Speed Test, AP Discovery, Statistics |
| Syslog | 有 |
| Mail Alert | 有 |
| SNMP | v2, v2c, v3 |
| Managed by VigorConnect | 有 |
| Managed by VigorACS | 有 |
物理特性 |
|
| 適用環境 | 室內 |
| 安裝方式 | 壁插式 |
| 電源 | AC 100-240V @ 0.25A |
| 最大功耗 | 10.7 watts |
| 尺寸 (W x H x D) | 59mm x 91mm x 40mm (不包含電源插座) |
| 重量 | 130 g |
| 操作溫度範圍 | 0 至 40°C |
| 儲存溫度範圍 | -20 to 60°C |
| 操作濕度範圍 | 10 to 90% non-condensing |
| 安規認證 |    |
| NCC 證號 | CCAL19LP1540T4 |
